Fan heater, three speed FLOWAIR axial fan, 304L stainless steel casing, two row heat exchanger, 10-72 kW heating capacity, air flow 2900/4600/5800 m³/h, fan power 270/370/520 W, weight 29.9 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
LEO INOX 304L - three speed FLOWAIR axial fan, 304L stainless steel casing
LEO S1 INOX 304L One row heat exchanger, 1-10 kW heating capacity, air flow 1500/1900/2300 m³/h, fan power 70/90/120 W, weight 13.5 kg, 2 year WARRANTY
LEO S1 INOX 304L
One row heat exchanger, 1-10 kW heating capacity, air flow 1500/1900/2300 m³/h, fan power 70/90/120 W, weight 13.5 kg, 2 year WARRANTY
LEO S2 INOX 304L Two row heat exchanger, 3-20 kW heating capacity, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 13.8 kg, 2 year WARRANTY
LEO S2 INOX 304L
Two row heat exchanger, 3-20 kW heating capacity, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 13.8 kg, 2 year WARRANTY
LEO S3 INOX 304L Two row heat exchanger, 3-25 kW heating capacity, air flow 1000/1400/1800 m³/h, fan power 70/90/130 W, weight 14.3 kg, 2 year WARRANTY
LEO S3 INOX 304L
Two row heat exchanger, 3-25 kW heating capacity, air flow 1000/1400/1800 m³/h, fan power 70/90/130 W, weight 14.3 kg, 2 year WARRANTY
LEO L1 INOX 304L One row heat exchanger, 2-25 kW heating capacity, air flow 1700/2800/4250 m³/h, fan power 120/240/330 W, weight 19.4 kg, 2 year WARRANTY
LEO L1 INOX 304L
One row heat exchanger, 2-25 kW heating capacity, air flow 1700/2800/4250 m³/h, fan power 120/240/330 W, weight 19.4 kg, 2 year WARRANTY
LEO L2 INOX 304L Two row heat exchanger, 5-38 kW heating capacity, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 20.8 kg, 2 year WARRANTY
LEO L2 INOX 304L
Two row heat exchanger, 5-38 kW heating capacity, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 20.8 kg, 2 year WARRANTY
LEO L3 INOX 304L Three row heat exchanger, 7-50 kW heating capacity, air flow 1200/2100/3400 m³/h, fan power 120/240/340 W, weight 22.7 kg, 2 year WARRANTY
LEO L3 INOX 304L
Three row heat exchanger, 7-50 kW heating capacity, air flow 1200/2100/3400 m³/h, fan power 120/240/340 W, weight 22.7 kg, 2 year WARRANTY
LEO XL2 INOX 304L Two row heat exchanger, 10-72 kW heating capacity, air flow 2900/4600/5800 m³/h, fan power 270/370/520 W, weight 29.9 kg, 2 year WARRANTY
LEO XL2 INOX 304L
Two row heat exchanger, 10-72 kW heating capacity, air flow 2900/4600/5800 m³/h, fan power 270/370/520 W, weight 29.9 kg, 2 year WARRANTY
LEO XL3 INOX 304L Three row heat exchanger, 14-92 kW heating capacity, air flow 2500/4100/5300 m³/h, fan power 270/370/550 W, weight 34.2 kg, 2 year WARRANTY
LEO XL3 INOX 304L
Three row heat exchanger, 14-92 kW heating capacity, air flow 2500/4100/5300 m³/h, fan power 270/370/550 W, weight 34.2 kg, 2 year WARRANTY
LEO INOX 316L - three speed FLOWAIR axial fan, 316L stainless steel casing
LEO S1 INOX 316L One row heat exchanger, 1-10 kW heating capacity, air flow 1500/1900/2300 m³/h, fan power 70/90/120 W, weight 13.5 kg, 2 year WARRANTY
LEO S1 INOX 316L
One row heat exchanger, 1-10 kW heating capacity, air flow 1500/1900/2300 m³/h, fan power 70/90/120 W, weight 13.5 kg, 2 year WARRANTY
LEO S2 INOX 316L Two row heat exchanger, 3-20 kW heating capacity, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 13.8 kg, 2 year WARRANTY
LEO S2 INOX 316L
Two row heat exchanger, 3-20 kW heating capacity, air flow 1250/1600/2000 m³/h, fan power 70/90/130 W, weight 13.8 kg, 2 year WARRANTY
LEO S3 INOX 316L Two row heat exchanger, 3-25 kW heating capacity, air flow 1000/1400/1800 m³/h, fan power 70/90/130 W, weight 14.3 kg, 2 year WARRANTY
LEO S3 INOX 316L
Two row heat exchanger, 3-25 kW heating capacity, air flow 1000/1400/1800 m³/h, fan power 70/90/130 W, weight 14.3 kg, 2 year WARRANTY
LEO L1 INOX 316L One row heat exchanger, 2-25 kW heating capacity, air flow 1700/2800/4250 m³/h, fan power 120/240/330 W, weight 19.4 kg, 2 year WARRANTY
LEO L1 INOX 316L
One row heat exchanger, 2-25 kW heating capacity, air flow 1700/2800/4250 m³/h, fan power 120/240/330 W, weight 19.4 kg, 2 year WARRANTY
LEO L2 INOX 316L Two row heat exchanger, 5-38 kW heating capacity, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 20.8 kg, 2 year WARRANTY
LEO L2 INOX 316L
Two row heat exchanger, 5-38 kW heating capacity, air flow 1400/2400/3800 m³/h, fan power 120/240/340 W, weight 20.8 kg, 2 year WARRANTY
LEO L3 INOX 316L Three row heat exchanger, 7-50 kW heating capacity, air flow 1200/2100/3400 m³/h, fan power 120/240/340 W, weight 22.7 kg, 2 year WARRANTY
LEO L3 INOX 316L
Three row heat exchanger, 7-50 kW heating capacity, air flow 1200/2100/3400 m³/h, fan power 120/240/340 W, weight 22.7 kg, 2 year WARRANTY
LEO XL2 INOX 316L Two row heat exchanger, 10-72 kW heating capacity, air flow 2900/4600/5800 m³/h, fan power 270/370/520 W, weight 29.9 kg, 2 year WARRANTY
LEO XL2 INOX 316L
Two row heat exchanger, 10-72 kW heating capacity, air flow 2900/4600/5800 m³/h, fan power 270/370/520 W, weight 29.9 kg, 2 year WARRANTY
LEO XL3 INOX 316L Three row heat exchanger, 14-92 kW heating capacity, air flow 2500/4100/5300 m³/h, fan power 270/370/550 W, weight 34.2 kg, 2 year WARRANTY
LEO XL3 INOX 316L
Three row heat exchanger, 14-92 kW heating capacity, air flow 2500/4100/5300 m³/h, fan power 270/370/550 W, weight 34.2 kg, 2 year WARRANTY
Model: LEO XL2 INOX 304L
General data
Heating capacity at 90/70°C water and 0°C air temperature
kW
71,6
Heating capacity at 40/30°C water and 20°C air temperature
kW
10,5
Max. air flow
m³/h
5800
Fan data
Power supply
V/Hz
230/50
Fan type
3-speed AC
IP / Insulation class
54 / F
Fan data at 3rd (max) speed
Air flow
m³/h
5800
Air flow range (measured horizontaly at 0.5 m/s speed limit)
m
26,0
Air flow range (measured verticaly at 0.5 m/s speed limit)
m
8,5
Power consumption
W
520
Current consumption
A
2,3
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
67,5
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
82,6
Fan data at 2nd (mid) speed
Air flow
m³/h
4600
Air flow range (measured horizontaly at 0.5 m/s speed limit)
m
20,5
Air flow range (measured verticaly at 0.5 m/s speed limit)
m
7,0
Power consumption
W
370
Current consumption
A
1,8
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
61,1
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
76,2
Fan data at 1st (min) speed
Air flow
m³/h
2900
Air flow range (measured horizontaly at 0.5 m/s speed limit)
m
13,0
Air flow range (measured verticaly at 0.5 m/s speed limit)
m
4,7
Power consumption
W
270
Current consumption
A
1,4
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
52,3
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
67,8
Installation data
Max. operating temperature
°C
60
Max. heating water temperature
°C
130
Max. operating pressure
MPa
1,6
Hydraulic connection
Ø "
¾
Other data
Heat exchanger
Copper with aluminum plates, one row
Casing
Stainless steel 304L
Dimensions
Width
mm
810
Depth
mm
455
Height
mm
705
Weight
kg
29,9
Weight of unit filled with water
kg
32,6

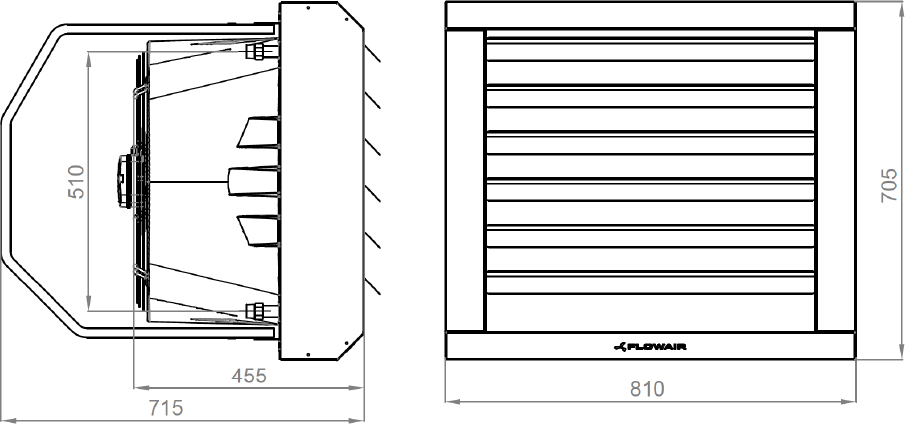

Dimensions

Model: LEO XL2 INOX 304L

Heating capacity tables

LEO XL2 INOX 304L airflow on 3 speed = 5800 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 120/90°C
94,0
2799
23,1
52,5
89,5
2666
21,1
54,5
85,1
2533
19,2
57,0
80,6
2400
17,4
59,5
76,2
2269
15,7
61,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
71,6
3159
30,7
40,0
67,0
2958
27,2
42,0
62,5
2757
23,9
44,5
57,9
2556
20,8
47,0
53,4
2355
17,9
49,0

0
5
10
15
20
Tw1/Tw2 = 80/60°C
61,5
2702
23,7
34,5
56,9
2500
20,6
36,5
52,3
2299
17,7
39,0
47,7
2096
14,9
41,5
43,1
1894
12,4
43,5

0
5
10
15
20
Tw1/Tw2 = 70/50°C
51,4
2248
17,5
28,5
46,8
2046
14,7
31,0
42,1
1843
12,2
33,5
37,5
1639
9,9
35,5
32,8
1433
7,8
38,0

0
5
10
15
20
Tw1/Tw2 = 60/40°C
41,2
1794
12,1
23,0
36,5
1591
9,7
25,5
31,8
1386
7,6
27,5
27,1
1179
5,7
30,0
22,2
969
4,0
32,0

0
5
10
15
20
Tw1/Tw2 = 40/30°C
29,6
2568
24,4
16,5
24,9
2161
17,9
19,0
20,2
1751
12,3
21,0
15,4
1336
7,6
23,5
10,5
910
3,8
25,5
LEO XL2 INOX 304L airflow on 2 speed = 4600 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 120/90°C
81,2
2416
17,6
57,0
77,3
2301
16,1
59,0
73,4
2186
14,7
61,0
69,6
2072
13,3
63,5
65,8
1959
12,0
65,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
61,7
2725
23,4
43,5
57,8
2552
20,8
45,5
53,9
2379
18,3
47,5
50,0
2206
15,9
49,5
46,1
2033
13,7
51,5

0
5
10
15
20
Tw1/Tw2 = 80/60°C
53,1
2332
18,1
37,5
49,1
2158
15,7
39,5
45,2
1984
13,5
41,5
41,2
1810
11,4
43,5
37,2
1636
9,5
45,5

0
5
10
15
20
Tw1/Tw2 = 70/50°C
44,4
1941
13,4
31,0
40,4
1766
11,3
33,5
36,4
1592
9,4
35,5
32,4
1416
7,6
37,5
28,3
1239
6,0
39,5

0
5
10
15
20
Tw1/Tw2 = 60/40°C
35,6
1550
9,3
25,0
31,5
1375
7,5
27,0
27,5
1198
5,8
29,0
23,4
1019
4,4
31,0
19,2
838
3,1
33,0

0
5
10
15
20
Tw1/Tw2 = 40/30°C
25,6
2216
18,7
18,0
21,5
1866
13,8
20,0
17,5
1512
9,5
22,0
13,3
1154
5,8
24,0
9,1
786
3,0
26,5
LEO XL2 INOX 304L airflow on 1 speed = 2900 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 120/90°C
59,5
1770
10,0
66,0
56,6
1686
9,1
68,0
53,8
1603
8,3
69,5
51,0
1520
7,6
71,0
48,3
1437
6,8
72,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
45,2
1995
13,3
50,5
42,4
1869
11,8
52,0
39,5
1743
10,4
53,5
36,6
1617
9,1
55,5
33,8
1491
7,8
57,0

0
5
10
15
20
Tw1/Tw2 = 80/60°C
38,9
1709
10,3
43,5
36,0
1582
9,0
45,0
33,1
1455
7,7
46,5
30,2
1328
6,5
48,5
27,3
1201
5,5
50,0

0
5
10
15
20
Tw1/Tw2 = 70/50°C
32,5
1424
7,7
36,0
29,6
1296
6,5
38,0
26,7
1169
5,4
39,5
23,8
1040
4,4
41,0
20,8
911
3,5
43,0

0
5
10
15
20
Tw1/Tw2 = 60/40°C
26,1
1138
5,3
29,0
23,2
1010
4,3
30,5
20,2
881
3,4
32,5
17,2
750
2,5
34,0
14,1
616
1,8
35,5

0
5
10
15
20
Tw1/Tw2 = 40/30°C
18,7
1624
10,7
21,0
15,8
1368
7,9
22,5
12,8
1110
5,5
24,0
9,8
847
3,4
26,0
6,6
573
1,7
27,0
  • PT - heating capacity
  • Tp1 - air temperature at the unit inlet
  • Tp2 - air temperature at the unit outlet
  • Tw1 - heating medium temperature at the heat exchanger inlet
  • Tw2 - heating medium temperature at the heat exchanger outlet
  • Qw - heating medium flow rate in heat exchanger
  • Δpw - heating medium pressure drop in heat exchanger

If you want to calculate heating capacity at different parameters you can do this at manufacturer website.

Industrial buildings - INOX The LEO INOX heater has been developed to meet a high level of humidity, which is why it can be used in facilities such as: car washes, industrial workshops, food industry production halls, greenhouses etc.
  The stainless steel housing of the device ensures its durability against corrosive agents. To retain its anti-corrosion properties, it must be continuously kept clean.
  The heat exchanger is built of copper pipes with aluminium lamellas on them.
Selection

Selection - to choose the appropriate INOX steel grade of which the heater housing will be made, the parameters of the working environment must be determined appropriately: the type of substances causing corrosion, pH, humidity, etc.

LEO INOX water heaters with stainless steel housing
Manuals 1.6 MB
Declarations of conformity 1.1 MB
Catalogue 2.1 MB
AutoCAD drawings 1023 KB
TS controller for equipment with 3-speed fans
Manuals 187 KB
Declarations of conformity 1.1 MB
HMI programable controller for equipment with 3-speed fans
Manuals 811 KB
Declarations of conformity 1.5 MB
MODBUS protocol for connection to BMS 148 KB
T-box controller
Manuals 5.7 MB
Declarations of conformity 643 KB
MODBUS protocol for connection to BMS 5.9 MB
T-box Zone controller
Manuals 8.4 MB
Declarations of conformity 643 KB
MODBUS protocol for connection to BMS 192 KB
DRV V control module for 3-speed fan heaters
Manuals 348 KB
RX control signal splitter for equipment with 3-speed fans
Manuals 2 MB
Declarations of conformity 1.4 MB
