Electric air curtain, with heating / without heating mode, horizontal mounting, three-phase connection (also can be connected to single-phase outlet), wireless remote control (up to 8 m), can be controlled by door contact, max. mounting height 3 m, adjustable heat output: 2/4/6 kW, adjustable air flow: 1050/1200 m³/h, fan power 180 W, length 1 m, weight 15.5 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
HEAT1 E - with heating / without heating mode, horizontal mounting, three-phase connection (also can be connected to single-phase outlet), wireless remote control (up to 8 m), can be controlled by door contact, max. mounting height 3 m
HEAT1-E-90-3PH Adjustable heat output: 2/4/6 kW, adjustable air flow: 900/1000 m³/h, fan power 160 W, length 0.9 m, weight 14.5 kg, 2 year WARRANTY
HEAT1-E-90-3PH
Adjustable heat output: 2/4/6 kW, adjustable air flow: 900/1000 m³/h, fan power 160 W, length 0.9 m, weight 14.5 kg, 2 year WARRANTY
HEAT1-E-100-3PH Adjustable heat output: 2/4/6 kW, adjustable air flow: 1050/1200 m³/h, fan power 180 W, length 1 m, weight 15.5 kg, 2 year WARRANTY
HEAT1-E-100-3PH
Adjustable heat output: 2/4/6 kW, adjustable air flow: 1050/1200 m³/h, fan power 180 W, length 1 m, weight 15.5 kg, 2 year WARRANTY
HEAT1-E-120-3PH Adjustable heat output: 2.7/5.3/8 kW, adjustable air flow: 1300/1500 m³/h, fan power 200 W, length 1.2 m, weight 17 kg, 2 year WARRANTY
HEAT1-E-120-3PH
Adjustable heat output: 2.7/5.3/8 kW, adjustable air flow: 1300/1500 m³/h, fan power 200 W, length 1.2 m, weight 17 kg, 2 year WARRANTY
HEAT1-E-150-3PH Adjustable heat output: 3.3/6.7/10 kW, adjustable air flow: 1700/1900 m³/h, fan power 230 W, length 1.5 m, weight 20.5 kg, 2 year WARRANTY
HEAT1-E-150-3PH
Adjustable heat output: 3.3/6.7/10 kW, adjustable air flow: 1700/1900 m³/h, fan power 230 W, length 1.5 m, weight 20.5 kg, 2 year WARRANTY
HEAT1-E-200-3PH Adjustable heat output: 4.6/9.4/14 kW, adjustable air flow: 2600/2800 m³/h, fan power 350 W, length 2 m, weight 26 kg, 2 year WARRANTY
HEAT1-E-200-3PH
Adjustable heat output: 4.6/9.4/14 kW, adjustable air flow: 2600/2800 m³/h, fan power 350 W, length 2 m, weight 26 kg, 2 year WARRANTY
Model: HEAT1-E-100-3PH
General data
Adjustable heating power (3 steps)
kW
2 / 4 / 6
Max. air flow
m³/h
1200
Fan data
Max. power consumption
W
180
Steps
2
Diameter of fan wheel
mm
115
Fan data at 2nd (high) speed
Air flow
m³/h
1200
Air speed
m/s
8,5
Noise level
dB
57
Fan data at 1st (low) speed
Air flow
m³/h
1050
Air speed
m/s
7,5
Noise level
dB
55
Installation data
Power supply
V/Hz
3x380 / 50
Power consumption
kW
6,18
Installation
Horizontal
Max. mounting height
m
3
Other data
Color
White
Max. wireless remote control working distance
m
8
Dimensions
Length
mm
1000
Depth
mm
195
Height
mm
265
Weight
kg
15,5

Dimensions

Model: HEAT1-E-100-3PH

An air curtain is a device that creates an invisible air barrier, separating the building premises from exposure to the external environment. Electric air barriers are usually installed over doorways where the door or gate is often opened and closed, e.g.: in shops, warehouses, freezing chambers, etc. In summer, air curtains reduce heating of the premises, and in winter, they keep the cold air from entering the premises. The air barrier prevents dust, insects, fuel gases and other dirt from getting indoors.

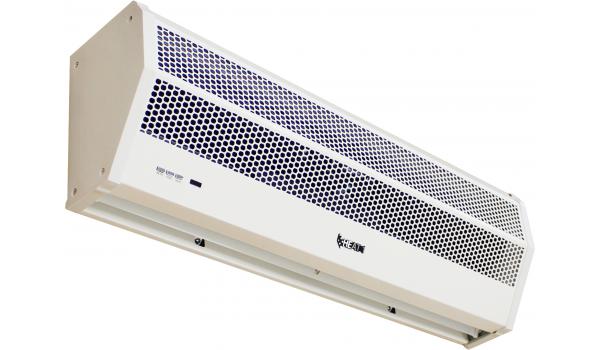

The modern electric air curtain HEAT1 is a combination of state-of-the-art design, functionality and handy control. In comparison to other air curtains, HEAT1 stands out with its adjustable heating capacity that can be set in three levels, and the two-level adjustable airflow. All these functionalities can be easily operated by a wireless remote control or buttons (ON/OFF; HEAT; COOL) on the device. Another advantage of air curtains HEAT1 is the possibility to choose whether to heat the out-flowing air or not. E.g., in summer, when no additional heating is required, you can save power by turning on the air barrier without heating. Premium quality components are used in manufacturing of the air curtain HEAT1: the spray-painted metal case, aluminium air intake grille, as well as energy-saving high efficiency heating elements.

When selecting the most suitable model from the stylish air curtains HEAT1, you can choose between three phase units - 1 m, 1.2 m and 1.5 m long and single phase units - 1 m and 1.2 m long. They are mounted horizontally up to 3 m high. The air in the unit is heated by electric heating elements (in heating mode), meanwhile, a quietly operating fan (56-59 dB) blows out the heated air. The built-in adjustable airflow direction valve allows directing the outgoing air under different angles, as necessary. The up-to-date high efficiency electric heating elements are protected against overheating: after turning off the air curtain, the fans continue to operate for a while (~30 s) in order to cool the electric heating elements. This extends the lifetime of the device.

Thanks to the state-of-the-art design, functionality, comfortable control and the fast and efficient air valve, the adjustable power air curtains HEAT1 are the number one choice in any premises!

The advantages of adjustable power electric air curtains HEAT1:

  • A great price and quality ratio!
  • Adjustable heating capacity and air flow. The heating capacity is adjusted in three levels, air flow – in two levels.
  • Heating/no heating mode: electric heating elements can be turned ON/OFF.

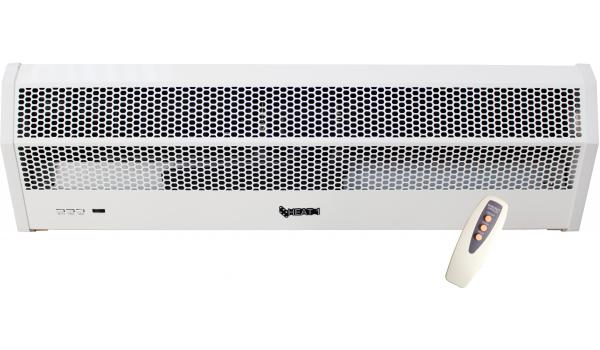

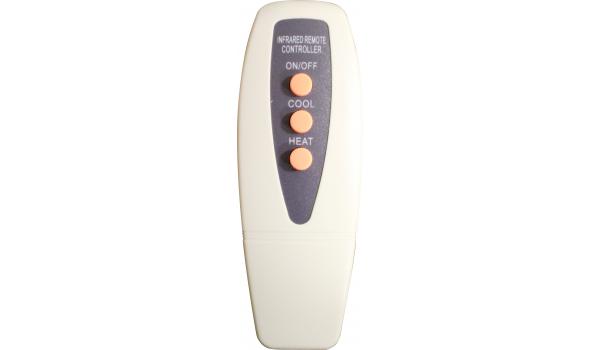

  • Comfortable control: can be controlled by a wireless remote control up to 8 m distance or using the buttons (ON/OFF; HEAT; COOL) on the front of the casing.
  • Air barrier: separates the climatic conditions between two premises; protects the premises from: the winter cold, summer heat, smoke, steam, insects and dust; keeps warm or cool air in the premises; reduces heating or air cooling costs; attracts customers to retail outlets (the open-door effect); provides more comfortable work environment for the staff; makes it easier to handle goods, saves time in logistic processes.
  • High quality components: a spray-painted metal casing, aluminium air intake grille, high-efficiency heating elements (double-row).
  • Triple safety technology: automated adjustment to capacity changes; an auxiliary fuse protecting the device from superpower; protects from overheating: after turning off the air curtain, the fans continue to operate for 30 s in order to cool the hot electric heating elements.
  • Simple installation and maintenance: easy installation using a bracket, easy to clean metallic casing.
  • Choice of several models: the air curtains come in three lengths, you can select between a three phase or single phase power connection.
  • Wide application options: shops, banks, theatres, bookshops, pharmacies, restaurants, coffee-houses, bars, administrative establishments, vestibules and other objects.
HEAT1 E adjustable power electric air curtains
Manuals 769 KB
Wiring diagram 52 KB
