The units of the VSA series are assembled on a strong self-supporting metal screwed and welded
structure, painted with epoxy powder with anti-rust coating for outdoor installation.
All units are supplied completely wired and ready to be connected to the user’s plant. Prior to delivery
every machine is submitted to a performance test, with intervention tests of all the safety systems and
components installed. Each unit is available with low-speed fans and compressor sound insulation kit for
installation in areas where noise emission must be extremely limited.

Available on several models equipped with one or more scroll or reciprocating compressors, dimensioned to be used with refrigerant type R410A or with the new low GWP HFO-1234ze or with R290.

  • Scroll compressors (R410A)
  • Reciprocating compressors (R290 or HFO1234ze)
  • AC or EC axial fans both 500 and 800 mm

COOLING CAPACITY: FROM 10 TO 460 KW

Typical units dimensions

  • Length: from 1600 to 4860 mm
  • Width: from 590 to 2100 mm
  • Height: from 870 to 2430 mm
  • Operating Weight: from 166 kg to 3302 kg
VSA CH dydis
VSA CH palyginmas

*The bigger sizes can be delivered in two sections (option).

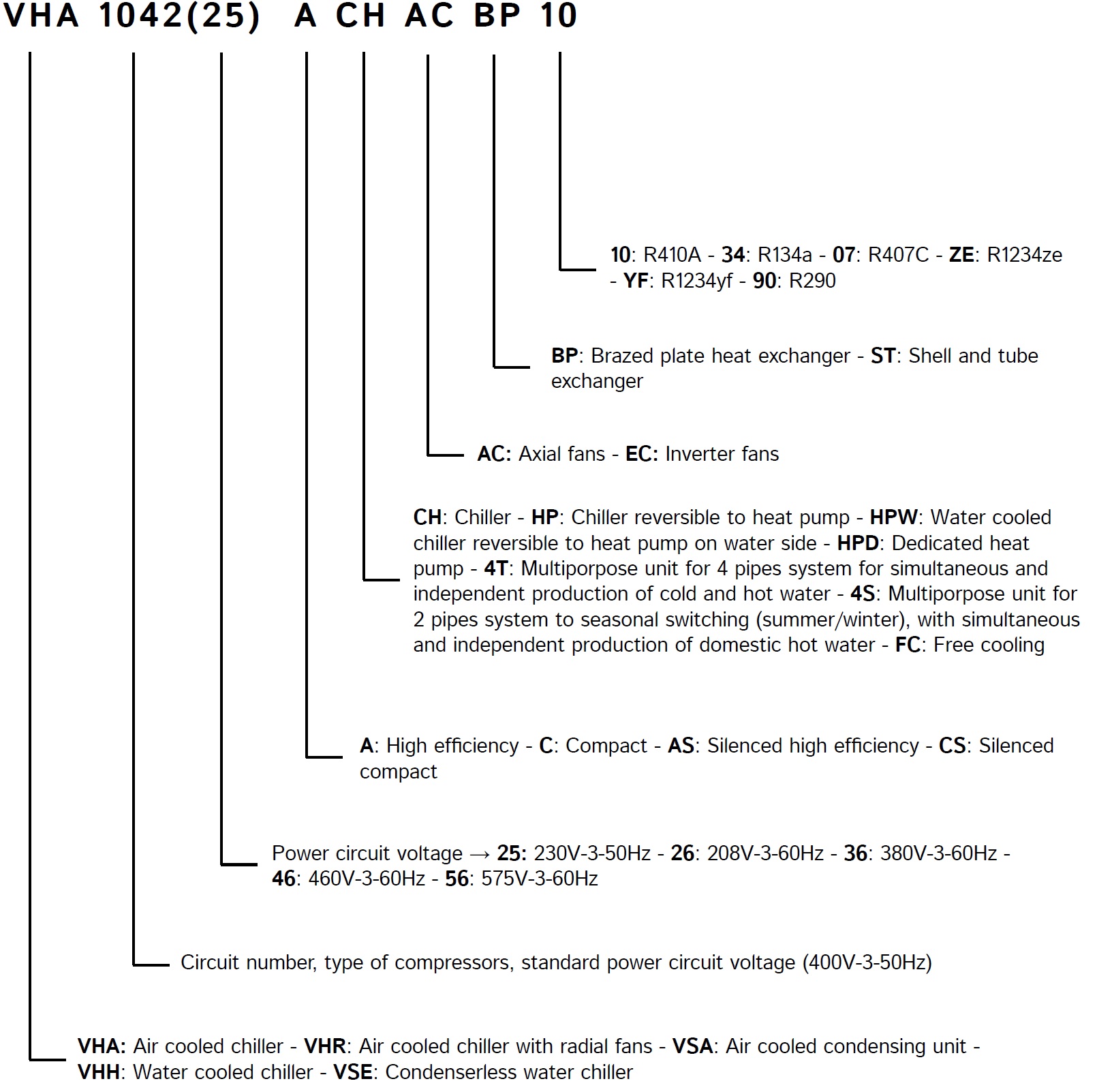

Here you can see an example about nomenclature of our units. The name of an air cooled chiller with scroll compressors, R410A gas refrigerant, a brazed plate evaporator and AC fans is composed of the following basic abbreviations. All specifications and options are subject to change without notice from the manufacturer.

VHA model making EN

Available options

Here you can see an example about available options of our units. If options will be present they are showed under the line of unit’s name description.

VHA model making2 EN

VSA CH air cooled condensing unit
Catalogue 1.4 MB
