Radiant gas heater - INFRA 15 BMAL 35 | Systema

Select the product model:

Radiant gas heater, linear, aluminised steel reflectors, over 91% efficiency, 35 kW thermal capacity, natural gas (G20) consumption 3.7 m³/h, length 15.15 m, weight 148 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
INFRA BMAL - linear, aluminised steel reflectors, over 91% efficiency
INFRA 9 BMAL 18 18 kW thermal capacity, natural gas (G20) consumption 1.9 m³/h, length 9.35 m, weight 98 kg, 2 year WARRANTY
INFRA 9 BMAL 18
18 kW thermal capacity, natural gas (G20) consumption 1.9 m³/h, length 9.35 m, weight 98 kg, 2 year WARRANTY
INFRA 12 BMAL 28 28 kW thermal capacity, natural gas (G20) consumption 2.96 m³/h, length 12.26 m, weight 124 kg, 2 year WARRANTY
INFRA 12 BMAL 28
28 kW thermal capacity, natural gas (G20) consumption 2.96 m³/h, length 12.26 m, weight 124 kg, 2 year WARRANTY
INFRA 15 BMAL 35 35 kW thermal capacity, natural gas (G20) consumption 3.7 m³/h, length 15.15 m, weight 148 kg, 2 year WARRANTY
INFRA 15 BMAL 35
35 kW thermal capacity, natural gas (G20) consumption 3.7 m³/h, length 15.15 m, weight 148 kg, 2 year WARRANTY
INFRA 18 BMAL 45 45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 18.05 m, weight 176 kg, 2 year WARRANTY
INFRA 18 BMAL 45
45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 18.05 m, weight 176 kg, 2 year WARRANTY
Model: INFRA 15 BMAL 35
General data
Nominal heating input
kW
35,0
Delivered thermal power
kW
32,0
Standard combustion efficiency
%
91,4
Natural gas (G20) consumption at 15 °C - 1013 mbar
m³/h
3,70
LPG (G30 - BUTAN) consumption at 15 °C - 1013 mbar
kg/h
2,76
LPG (G31 - PROPAN) consumption at 15 °C - 1013 mbar
kg/h
2,72
Fan data
Power consumption
W
100
Turbine diameter
mm Ø
133
Installation data
Power supply
V/Hz
230 V - 50/60 Hz
Max. power consumption
W
120
Gas connection
Ø "
1/2 [F]
Exhaust air flue diameter
mm Ø
100
Air Inlet flue diameter
mm Ø
100
Pressure switch calibration
Pa
60
Dimensions
Length
mm
15150
Width
mm
346
Height
mm
342
Weight
kg
148

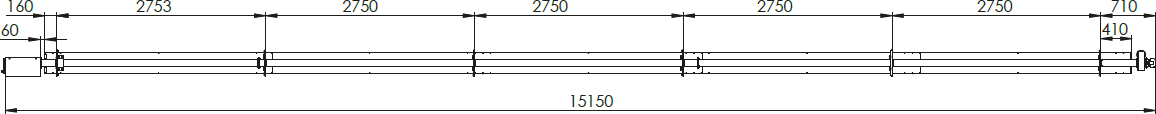

Dimensions

Model: INFRA 15 BMAL 35
Dimensions
INFRA BM gas fired radiant heaters (Linear)
