Radiant gas heater, aluminised steel reflectors, blown burner, more than 20% greater efficiency than standard units, natural gas only, 20 kW heat input, natural gas consumption 1.9 m³/h, horizontal mounting height 4.5-7 m, length 4 m, weight 114 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
VSX Recuperative U-Tube models - aluminised steel reflectors, blown burner, more than 20% greater efficiency than standard units, natural gas only
VSX20UTE2M 20 kW heat input, natural gas consumption 1.9 m³/h, horizontal mounting height 4.5-7 m, length 4 m, weight 114 kg, 2 year WARRANTY
VSX20UTE2M
20 kW heat input, natural gas consumption 1.9 m³/h, horizontal mounting height 4.5-7 m, length 4 m, weight 114 kg, 2 year WARRANTY
VSX25UTE2M 25 kW heat input, natural gas consumption 2.4 m³/h, horizontal mounting height 5-8 m, length 4 m, weight 114 kg, 2 year WARRANTY
VSX25UTE2M
25 kW heat input, natural gas consumption 2.4 m³/h, horizontal mounting height 5-8 m, length 4 m, weight 114 kg, 2 year WARRANTY
VSX30UTE2M 30 kW heat input, natural gas consumption 2.9 m³/h, horizontal mounting height 5.5-9 m, length 4 m, weight 114 kg, 2 year WARRANTY
VSX30UTE2M
30 kW heat input, natural gas consumption 2.9 m³/h, horizontal mounting height 5.5-9 m, length 4 m, weight 114 kg, 2 year WARRANTY
VSX30UTE3M 30 kW heat input, natural gas consumption 2.9 m³/h, horizontal mounting height 5.5-9 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX30UTE3M
30 kW heat input, natural gas consumption 2.9 m³/h, horizontal mounting height 5.5-9 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX35UTE3M 36 kW heat input, natural gas consumption 3.4 m³/h, horizontal mounting height 6-10 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX35UTE3M
36 kW heat input, natural gas consumption 3.4 m³/h, horizontal mounting height 6-10 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX40UTE3M 40 kW heat input, natural gas consumption 3.8 m³/h, horizontal mounting height 6.5-11 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX40UTE3M
40 kW heat input, natural gas consumption 3.8 m³/h, horizontal mounting height 6.5-11 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX45UTE3M 44 kW heat input, natural gas consumption 4.2 m³/h, horizontal mounting height 7-12 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX45UTE3M
44 kW heat input, natural gas consumption 4.2 m³/h, horizontal mounting height 7-12 m, length 6 m, weight 158 kg, 2 year WARRANTY
VSX45UTE4M 44 kW heat input, natural gas consumption 4.2 m³/h, horizontal mounting height 7-12 m, length 7.7 m, weight 205 kg, 2 year WARRANTY
VSX45UTE4M
44 kW heat input, natural gas consumption 4.2 m³/h, horizontal mounting height 7-12 m, length 7.7 m, weight 205 kg, 2 year WARRANTY
VSX50UTE4M 49.5 kW heat input, natural gas consumption 4.7 m³/h, horizontal mounting height 7.5-13 m, length 7.7 m, weight 205 kg, 2 year WARRANTY
VSX50UTE4M
49.5 kW heat input, natural gas consumption 4.7 m³/h, horizontal mounting height 7.5-13 m, length 7.7 m, weight 205 kg, 2 year WARRANTY
Model VSX20UT VSX25UT VSX30UT VSX35UT VSX40UT VSX45UT VSX50UT
Nominal gross heat input kW 20.0 25.0 32.0 36.0 40.0 44.0 49.5
Nominal gas rate per burner natural gas (G20) m3/h 1.9 2.4 3.1 3.4 3.8 4.2 4.7
Gas connection BSP/Rc 1/2"
Electrical supply   230V 1 phase 50Hz, max. 1 A
Exhaust flue – twin wall diameter mm 127
Flue gas temperature °C 190 - 250
Dimensions length m 4.05 5.93 7.69
width mm 746
height mm 450
Recommended mounting height range horizontal mounting m 4.5 - 7 5 - 8 5.5 - 9 6 - 10 6.5 - 11 7 - 12 7.5 - 13
inclined / wall mounted m 3.5 - 5 4 - 5 4 - 6 4.5 - 6.5 5 - 7 5.5 - 8 6 - 9
Weight kg 114 114 114 158 158 158 205

Minimum clearance distances to combustible surfaces

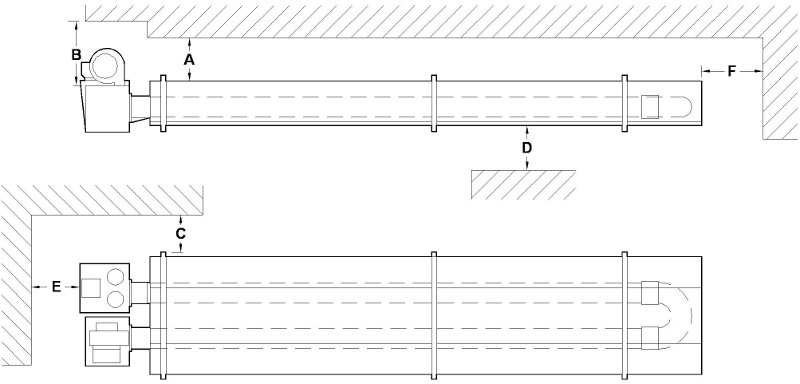

Gas heaters VSX clearance distances to combustible surfaces

Model VSX20UT VSX25UT VSX30UT VSX35UT VSX40UT VSX45UT VSX50UT
Above reflector A 100 100
Above burner & heat exchanger assembly B 500 500
To the sides C 1300 1300
Beneath tubes D 2300 2500
Horizontally from heat exchanger outlet unflued E 1200 1200
End of the heater to the wall F 700 700

U tube heater model concentrates radiant heat to a certain area of the room and not the whole of its space.

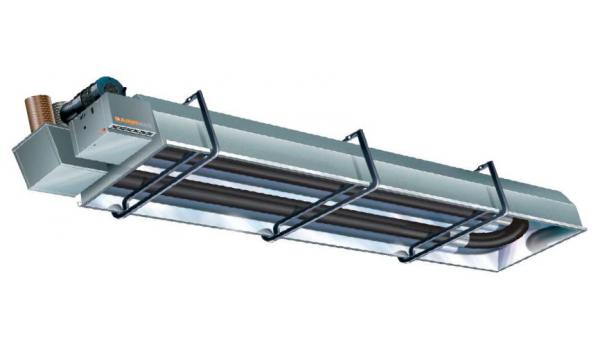

Heater design, in particular the fact that the hot air blown into the flue is near the burner, allowed Nortek company to create a unique product - a gas fired radiant tube heater with heat exchanger for recuperation. Technology of forced burner used in Linear models contributed to this, blowing fan is mounted above the burner, the hot air is pushed forward the heater tubes toward the flue. Instead of a direct connection to a flue on heater back, a unique heat exchanger was created. Hot exhaust air flows through it and warms pulled into the burner clean air. Air flows has no direct contact so pulled air is suitable for combustion, it's not pre-polluted.

Combining all of these components Nortek designed VSX unit of the thermal efficiency of up to 90% and radiant up to 65% (~50% on standart units).

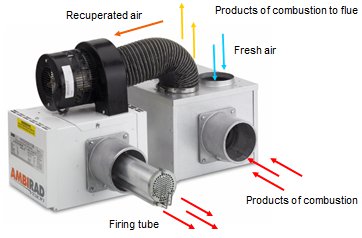

VSX recuperative burner

Introduction

Renowned for its pioneering track record, Nortek, Europe’s leading supplier of radiant tube heating systems, has yet again raised the industry standard in terms of innovation and technical performance.

The range of high efficiency Vision radiant tube heaters delivers exceptional performance in terms of efficiency and the potential to reduce energy costs.

The foundation of this development is a high efficiency advanced burner.

New advanced burner technology

  • New slim-line burner head provides a long evenly distributed flame that dramatically improves temperature distribution along the entire length of the heater, delivering a more even floor coverage
  • Combustion occurs entirely within the firing tube. Not only does this reduce the size and weight of the traditional burner control housing but it also helps to reduce noise levels (as quiet as 47 dB(A) 3m free field)
  • Choice of burner ratings from 20 to 50 kW
  • All units are CE approved
  • NOx emissions as low as 52ppm on certain models – 40% lower than standard radiant heater
  • The inclusion of a recuperative heat exchanger on VSX models (patent P308150GB), mounted adjacent to the burner housing, significantly increases thermal efficiencies up to 90% and enhances radiant efficiency above 60%

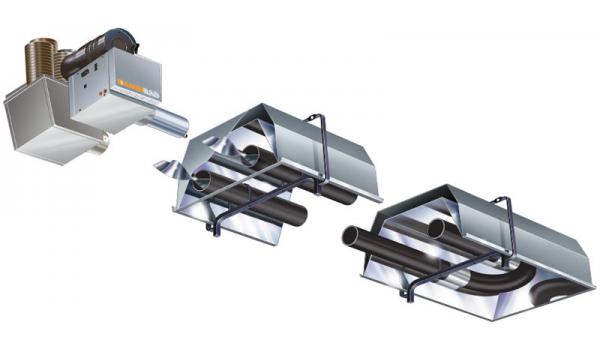

ConstructionVision radiant heaters constructions

Bolt in place brackets for safe secure reflector fixing.

Ideal in any application where a secure system is required, such as - wind exposure around overhead doors or hangar doors (walls).

Additional control at the touch of a button

All models are compatible with Nortek ‘SmartCom3’ control systems. SmartCom3 units incorporate a host of features such as self-learning optimised start-up to ensure increased comfort and energy savings.

Radiant Heating

Working in the same way as the sun, radiant heat warms all solid objects and surfaces in its path through electromagnetic waves. Being mounted overhead, Nortek radiant heaters produce infrared heat that is directed downwards to low level by a reflector.

Infrared energy passes inertly through the air, dissipating as heat upon contact with people and surfaces thus creating a comfortable, all-round radiant warmth at lower air temperature. This reduces wasteful heating of empty space and makes substantial energy savings over conventional boiler and air systems.

Universal Application

Radiant heating has traditionally been predominant in industrial and commercial buildings, especially where there are large, high bay areas or where there are a high number of air changes within the environment.

Vision has been developed with these markets in mind and with a view to making radiant heating truly competitive within new smaller industrial and commercial buildings.

Its application is universal including environments with high air change, frequently opened doors, or where there is a need for zonal heating in very large premises.

The highly efficient performance of Vision provides greatly reduced running costs and improved capital payback, setting new industry standards.

Benefits of radiant tube heating

  • Greater Comfort, “sandwiched” between a warm floor below and low intensity span above
  • Increased Efficiency, heat “work zone” not ceiling. Not increasing heat transfer by “scrubbing” building envelope with moving air
  • Faster Recovery when doors open/close, due to heat “reservoir” in the mass of the floor
  • Now Ambi-Rad Improves on a proven concept

Properties of radiant heat

  • Emitted by hot surfaces
  • Travels in straight lines
  • Passes through the air without heating it
  • Absorbed by cooler solid objects on which it falls

Applications

  • Aircraft hangars
  • Automotive workshops and showrooms
  • Factories
  • Retail outlets
  • Sports arenas and halls
  • Warehouses
  • Workshops

Optimum economy and fuel savings

  • The elimination of both distribution and standby losses coupled with high operational efficiencies at the point of use enable fuel savings of up to 65% compared with conventional heating systems.
  • Excellent radiant performance. More of the available heat generated is distributed to floor level thereby improving efficiency and reducing energy consumption.

Flueing

Units can be installed unflued or individually flued (including concentric flues to minimise building penetrations).

Fresh air intake

Fresh air can be ducted into the heat exchanger from outside the building to provide clean combustion air, required when there are contaminates in the atmosphere.

Burner

Burner ratings range between 20 and 50kW in 5kW increments. The new burner head located within the firing tube leg provides a very long flame with even heat distribution. NOx emissions are very low – as low as 52ppm on certain models.

Heat exchanger

Mounted adjacent to the burner housing. Significantly increases thermal efficiencies up to 90% and enhances radiant efficiency above 60%. (Patent P308150GB).

Control housing

Burner controls are mounted within a chassis that incorporates hinged doors for ease of access for commissioning and maintenance.

Tube finish

CALCOAT® tubes – a high technology process that applies a tough, dense, highly emissive surface both inside and out that eliminates the need for painting. As a result CALCOAT® ensures a long lasting surface that will not rust or flake, protects welds and maintains the highest of emissivity factors throughout the entire life of the heater.

Turbulators

Stainless steel spiral turbulators optimise tube temperatures by ‘scrubbing’ the flue gases against the tube surface, maximising heat transfer and increasing radiant efficiency.

Standard radiant heater

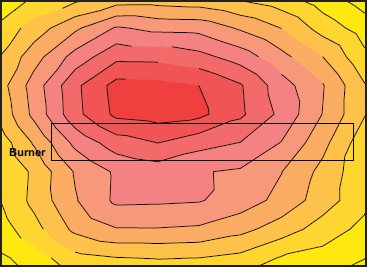

Standart radiant heaters temperature distribution

AmbiRad Vision (VSX)

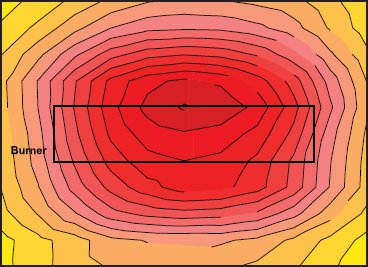

Recuperative VSX radiant heaters temperature distribution

AmbiRad Vision improves temperature distribution along the entire length of the heater

Vision radiant gas fired heaters
Manuals 15 MB
Declarations of conformity 210 KB
Brochures 1.1 MB
EC certificate 2.5 MB
SmartCom controller
Manuals 2.9 MB
Brochures 1.1 MB
