Radiant gas heater, U-tube, aluminised steel reflectors, induced burner, over 91% efficiency, 60 kW thermal capacity, natural gas (G20) consumption 6.35 m³/h, length 12.45 m, weight 177.5 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
INFRA BUAL - U-tube, aluminised steel reflectors, induced burner, over 91% efficiency
INFRA 3 BUAL 18 18 kW thermal capacity, natural gas (G20) consumption 1.9 m³/h, length 3.57 m, weight 65 kg, 2 year WARRANTY
INFRA 3 BUAL 18
18 kW thermal capacity, natural gas (G20) consumption 1.9 m³/h, length 3.57 m, weight 65 kg, 2 year WARRANTY
INFRA 6 BUAL 28 28 kW thermal capacity, natural gas (G20) consumption 2.96 m³/h, length 6.49 m, weight 86.5 kg, 2 year WARRANTY
INFRA 6 BUAL 28
28 kW thermal capacity, natural gas (G20) consumption 2.96 m³/h, length 6.49 m, weight 86.5 kg, 2 year WARRANTY
INFRA 6 BUAL 35 35 kW thermal capacity, natural gas (G20) consumption 3.7 m³/h, length 6.49 m, weight 86.5 kg, 2 year WARRANTY
INFRA 6 BUAL 35
35 kW thermal capacity, natural gas (G20) consumption 3.7 m³/h, length 6.49 m, weight 86.5 kg, 2 year WARRANTY
INFRA 9 BUAL 45 45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 9.47 m, weight 139 kg, 2 year WARRANTY
INFRA 9 BUAL 45
45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 9.47 m, weight 139 kg, 2 year WARRANTY
INFRA 9 BUAL 53 53 kW thermal capacity, natural gas (G20) consumption 5.61 m³/h, length 9.47 m, weight 140.5 kg, 2 year WARRANTY
INFRA 9 BUAL 53
53 kW thermal capacity, natural gas (G20) consumption 5.61 m³/h, length 9.47 m, weight 140.5 kg, 2 year WARRANTY
INFRA 12 BUAL 45 45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 12.45 m, weight 176 kg, 2 year WARRANTY
INFRA 12 BUAL 45
45 kW thermal capacity, natural gas (G20) consumption 4.76 m³/h, length 12.45 m, weight 176 kg, 2 year WARRANTY
INFRA 12 BUAL 60 60 kW thermal capacity, natural gas (G20) consumption 6.35 m³/h, length 12.45 m, weight 177.5 kg, 2 year WARRANTY
INFRA 12 BUAL 60
60 kW thermal capacity, natural gas (G20) consumption 6.35 m³/h, length 12.45 m, weight 177.5 kg, 2 year WARRANTY
INFRA 15 BUAL 60 60 kW thermal capacity, natural gas (G20) consumption 6.35 m³/h, length 15.43 m, weight 209.5 kg, 2 year WARRANTY
INFRA 15 BUAL 60
60 kW thermal capacity, natural gas (G20) consumption 6.35 m³/h, length 15.43 m, weight 209.5 kg, 2 year WARRANTY
Model: INFRA 12 BUAL 60
General data
Nominal heating input
kW
60,0
Delivered thermal power
kW
54,6
Standard combustion efficiency
%
91,0
Natural gas (G20) consumption at 15 °C - 1013 mbar
m³/h
6,35
LPG (G30 - BUTAN) consumption at 15 °C - 1013 mbar
kg/h
4,73
LPG (G31 - PROPAN) consumption at 15 °C - 1013 mbar
kg/h
4,66
Fan data
Power consumption
W
180
Turbine diameter
mm Ø
170
Installation data
Power supply
V/Hz
230 V - 50/60 Hz
Max. power consumption
W
200
Gas connection
Ø "
3/4 [F]
Exhaust air flue diameter
mm Ø
100
Air Inlet flue diameter
mm Ø
100
Pressure switch calibration
Pa
60
Dimensions
Length
mm
12450
Width
mm
597
Height
mm
385
Weight
kg
177,5

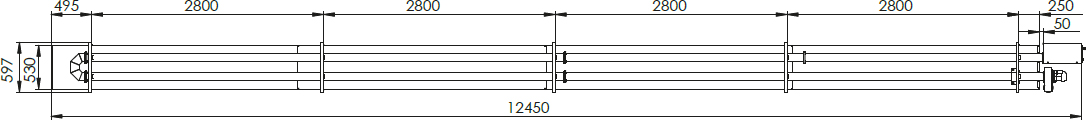

Dimensions

Model: INFRA 12 BUAL 60

Below is a U-shaped INFRA BU gas radiant heater heat spread graph.

Temperature measurements were made at a distance of 2 m from the burner.

Red lines shows the width of heated floor area.

INFRA BU heat radiation

INFRA BU gas fired radiant heaters (U-tube)
