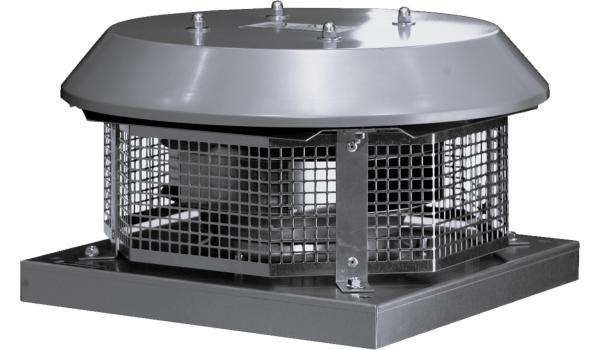

Compact roof mounted AC type centrifugal extraction fan with horizontal outlet - TNC-AC | Aspirnova

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
TNC-AC - centrifugal, compact, with horizontal outlet, AC type motor, epoxy varnished galvanized steel weathering cover, allowed extracted air temperature range from -30ºC to +70ºC, IP33/F protection / insulation class
TNC 220-AC 950 m³/h air flow, max. static pressure 500 Pa, power consumption 117 W, fan rotation speed 2450 rpm, weight 5 kg, one-phase connection, 2 year WARRANTY
TNC 220-AC
950 m³/h air flow, max. static pressure 500 Pa, power consumption 117 W, fan rotation speed 2450 rpm, weight 5 kg, one-phase connection, 2 year WARRANTY
TNC 225-AC 1150 m³/h air flow, max. static pressure 675 Pa, power consumption 135 W, fan rotation speed 2450 rpm, weight 6.2 kg, one-phase connection, 2 year WARRANTY
TNC 225-AC
1150 m³/h air flow, max. static pressure 675 Pa, power consumption 135 W, fan rotation speed 2450 rpm, weight 6.2 kg, one-phase connection, 2 year WARRANTY
TNC 250-AC 1450 m³/h air flow, max. static pressure 800 Pa, power consumption 205 W, fan rotation speed 2450 rpm, weight 7.8 kg, one-phase connection, 2 year WARRANTY
TNC 250-AC
1450 m³/h air flow, max. static pressure 800 Pa, power consumption 205 W, fan rotation speed 2450 rpm, weight 7.8 kg, one-phase connection, 2 year WARRANTY
TNC 280-AC 1900 m³/h air flow, max. static pressure 670 Pa, power consumption 303 W, fan rotation speed 2450 rpm, weight 9.5 kg, one-phase connection, 2 year WARRANTY
TNC 280-AC
1900 m³/h air flow, max. static pressure 670 Pa, power consumption 303 W, fan rotation speed 2450 rpm, weight 9.5 kg, one-phase connection, 2 year WARRANTY
