Click on the Model for technical data, dimensions, accessories

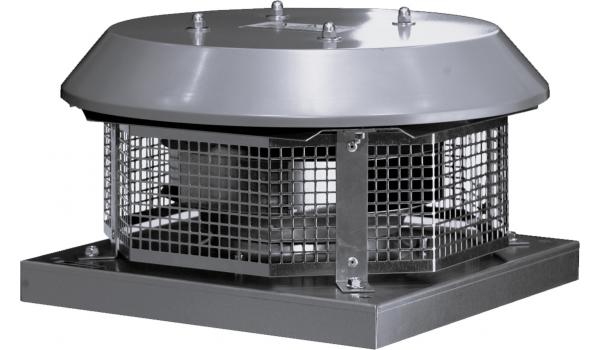

TNC-EC - centrifugal, compact, with horizontal outlet, modulating speed EC type motor (controlled by 0-10V signal), epoxy varnished galvanized steel weathering cover, allowed extracted air temperature range from -30ºC to +60ºC, IP54/F protection / insulation class
TNC 220-EC 1088 m³/h air flow, max. static pressure 490 Pa, power consumption 120 W, fan rotation speed 2842 rpm, weight 5 kg, one-phase connection, 2 year WARRANTY
TNC 220-EC
1088 m³/h air flow, max. static pressure 490 Pa, power consumption 120 W, fan rotation speed 2842 rpm, weight 5 kg, one-phase connection, 2 year WARRANTY
TNC 250-EC 1531 m³/h air flow, max. static pressure 629 Pa, power consumption 200 W, fan rotation speed 2792 rpm, weight 7.8 kg, one-phase connection, 2 year WARRANTY
TNC 250-EC
1531 m³/h air flow, max. static pressure 629 Pa, power consumption 200 W, fan rotation speed 2792 rpm, weight 7.8 kg, one-phase connection, 2 year WARRANTY
TNC 280-EC 2029 m³/h air flow, max. static pressure 757 Pa, power consumption 274 W, fan rotation speed 2573 rpm, weight 9.5 kg, one-phase connection, 2 year WARRANTY
TNC 280-EC
2029 m³/h air flow, max. static pressure 757 Pa, power consumption 274 W, fan rotation speed 2573 rpm, weight 9.5 kg, one-phase connection, 2 year WARRANTY
