Click on the Model for technical data, dimensions, accessories
Cube OV - modular air supply and extract unit with heat recovery and recirculation function

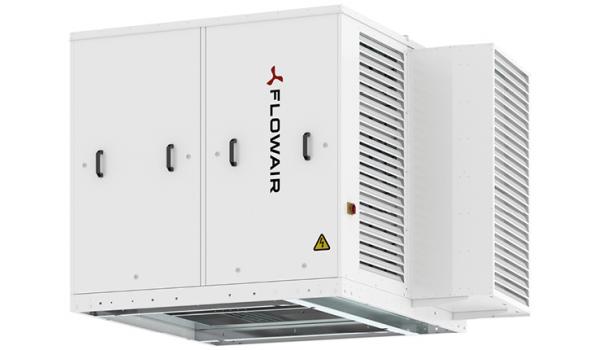

Cube OV Main roof module for air supply and extract unit with heat recovery and recirculation function, nominal air flow 8000 m³/h at 250 Pa, modulating energy saving EC fans, ePM2.5 65% (~F7) fresh air intake pocket filter, ePM10 50% (~M5) extracted room air cassette filter, 47 dB(A) sound pressure level at 10 m distance from unit, rotary heat exchanger with over 74.1% recuperation efficiency, recirculation damper ensures even regulation of fresh and recirculated air, Flowair control System with T-box Zone control panel allows devices to be connected to BMS, roof module weight ~600 kg, 2 years WARRANTY for all modules
Cube OV
Main roof module for air supply and extract unit with heat recovery and recirculation function, nominal air flow 8000 m³/h at 250 Pa, modulating energy saving EC fans, ePM2.5 65% (~F7) fresh air intake pocket filter, ePM10 50% (~M5) extracted room air cassette filter, 47 dB(A) sound pressure level at 10 m distance from unit, rotary heat exchanger with over 74.1% recuperation efficiency, recirculation damper ensures even regulation of fresh and recirculated air, Flowair control System with T-box Zone control panel allows devices to be connected to BMS, roof module weight ~600 kg, 2 years WARRANTY for all modules

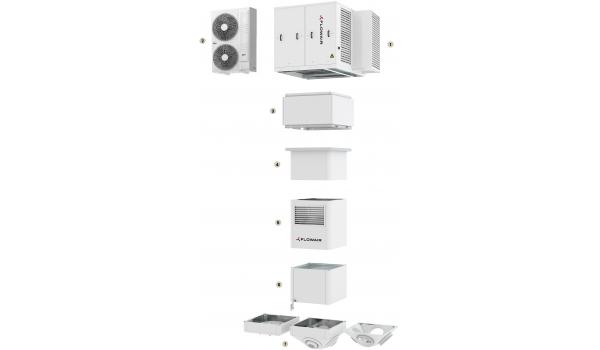

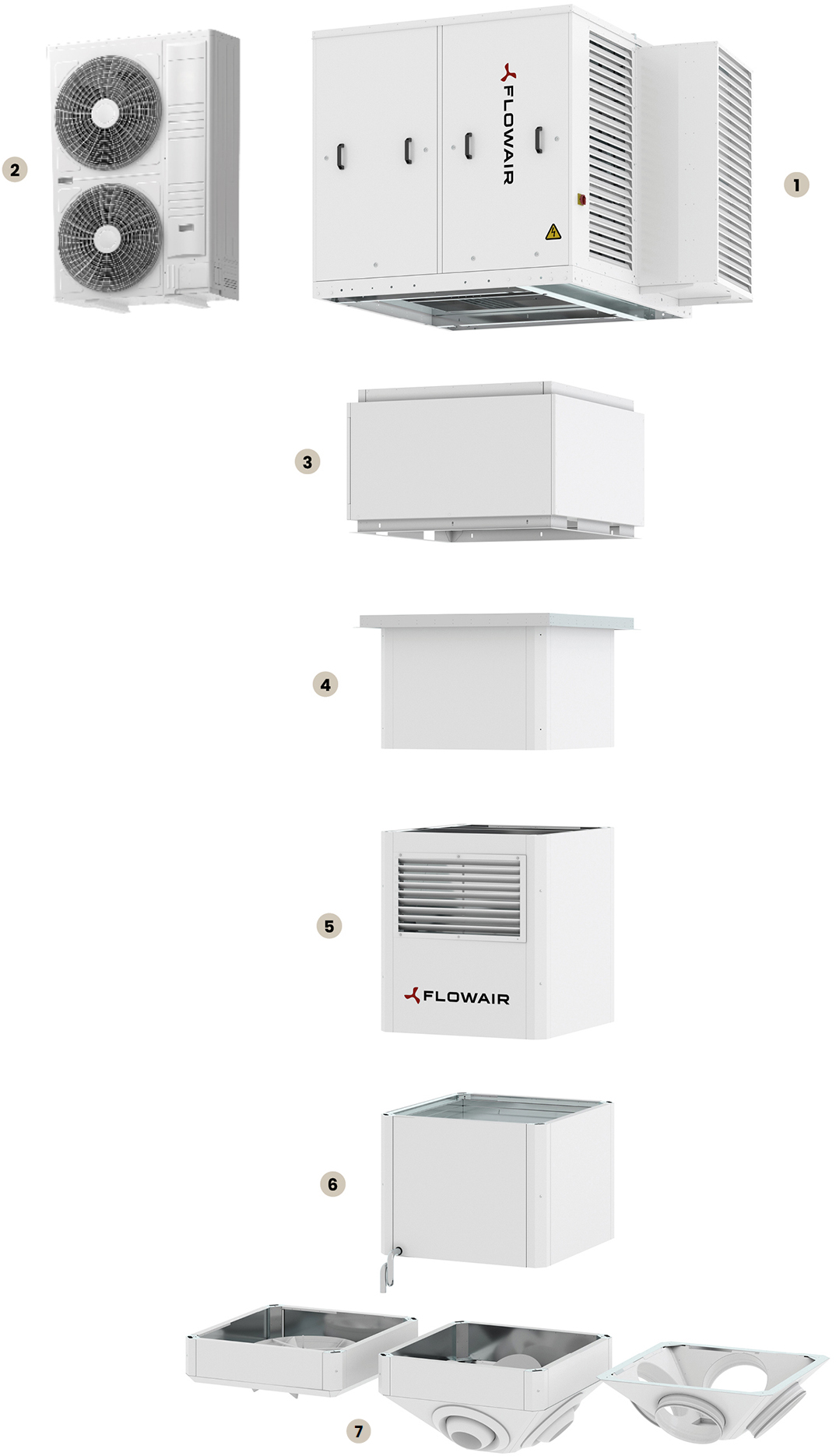

Cube OV construction

  1. Main roof module

    • smooth and automatic fan control
    • integrated automation system
    • certified heat recovery in a rotary heat exchanger
    • recirculated air damper
    • supply and exhaust air filters

  2. Condensing unit module

    • designed for use with DX (Direct eXpansion) exchanger
    • factory-mounted on the same frame as the main roof module
    • smooth power regulation
    • can be used in temperatures down to -25°C
    • reversible, can be used for both heating and cooling

  3. Gas heater module

    • smooth regulation of modulating heating power
    • convenient servicing on the roof of the building

  4. Roof transition module

    • This module is attached to the roof frame, which holds the entire structure of the unit

  5. Air distribution module

    • polluted room air is extracted through the side grille
    • a water heater can be installed inside (W2, W3, W4)

  6. Cooling / heating exchangers module

    • water cooling / heating exchanger (X2, X3, X4)
    • DX (Direct eXpansion) exchanger (DX-FA2, DX-FA5)
    • built-in condensate trap

  7. Air supply module

    • swirl diffuser with actuator and automatic adjustment (D)
    • long distance nozzles for high rooms (J)
    • ducted flow distributor for low rooms (V)
Cube OV modular ventilation unit with heat recovery and recirculation function
