Electric air curtain - HEAT1-ES3-150-3PH | HEAT1

Select the product model:

Electric air curtain, with heating / without heating mode, horizontal mounting, three-phase connection (also can be connected to single-phase outlet), centrifugal fans for high airflow, wireless remote control, can be controlled by door contact, max. mounting height 4 m, 20 kW heat output, air flow 2870/3390 m³/h, fan power 350/380 W, sound pressure level 56/58 dB(A), length 1.5 m, weight 35.5 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
HEAT1 ES3 - with heating / without heating mode, horizontal mounting, three-phase connection (also can be connected to single-phase outlet), centrifugal fans for high airflow, wireless remote control, can be controlled by door contact, max. mounting height 4 m
HEAT1-ES3-120-3PH 16 kW heat output, air flow 2270/2690 m³/h, fan power 260/290 W, sound pressure level 54/56 dB(A), length 1.2 m, weight 28 kg, 2 year WARRANTY
HEAT1-ES3-120-3PH
16 kW heat output, air flow 2270/2690 m³/h, fan power 260/290 W, sound pressure level 54/56 dB(A), length 1.2 m, weight 28 kg, 2 year WARRANTY
HEAT1-ES3-150-3PH 20 kW heat output, air flow 2870/3390 m³/h, fan power 350/380 W, sound pressure level 56/58 dB(A), length 1.5 m, weight 35.5 kg, 2 year WARRANTY
HEAT1-ES3-150-3PH
20 kW heat output, air flow 2870/3390 m³/h, fan power 350/380 W, sound pressure level 56/58 dB(A), length 1.5 m, weight 35.5 kg, 2 year WARRANTY
HEAT1-ES3-200-3PH 24 kW heat output, air flow 3310/3680 m³/h, fan power 440/470 W, sound pressure level 62/60 dB(A), length 2 m, weight 44 kg, 2 year WARRANTY
HEAT1-ES3-200-3PH
24 kW heat output, air flow 3310/3680 m³/h, fan power 440/470 W, sound pressure level 62/60 dB(A), length 2 m, weight 44 kg, 2 year WARRANTY
Model: HEAT1-ES3-150-3PH
General data
Heating output
kW
20
Max. air flow
m³/h
3390
Fan data
Fan type
Centrifugal
Steps
2
Fan data at 2nd (high) speed
Air flow
m³/h
3390
Air speed
m/s
12
Power consumption
W
380
Noise level
dB
58
Fan data at 1st (low) speed
Air flow
m³/h
2870
Air speed
m/s
10
Power consumption
W
350
Noise level
dB
56
Installation data
Power supply
V/Hz
3x380 / 50
Max. power consumption
kW
20,38
Installation
Horizontal
Max. mounting height
m
4
Min. distance to ceiling
m
0,05
Other data
Casing
Metal
Color
White / Black
Remote control panel
Yes
Dimensions
Length
mm
1500
Depth
mm
246
Height
mm
348
Weight
kg
35,5

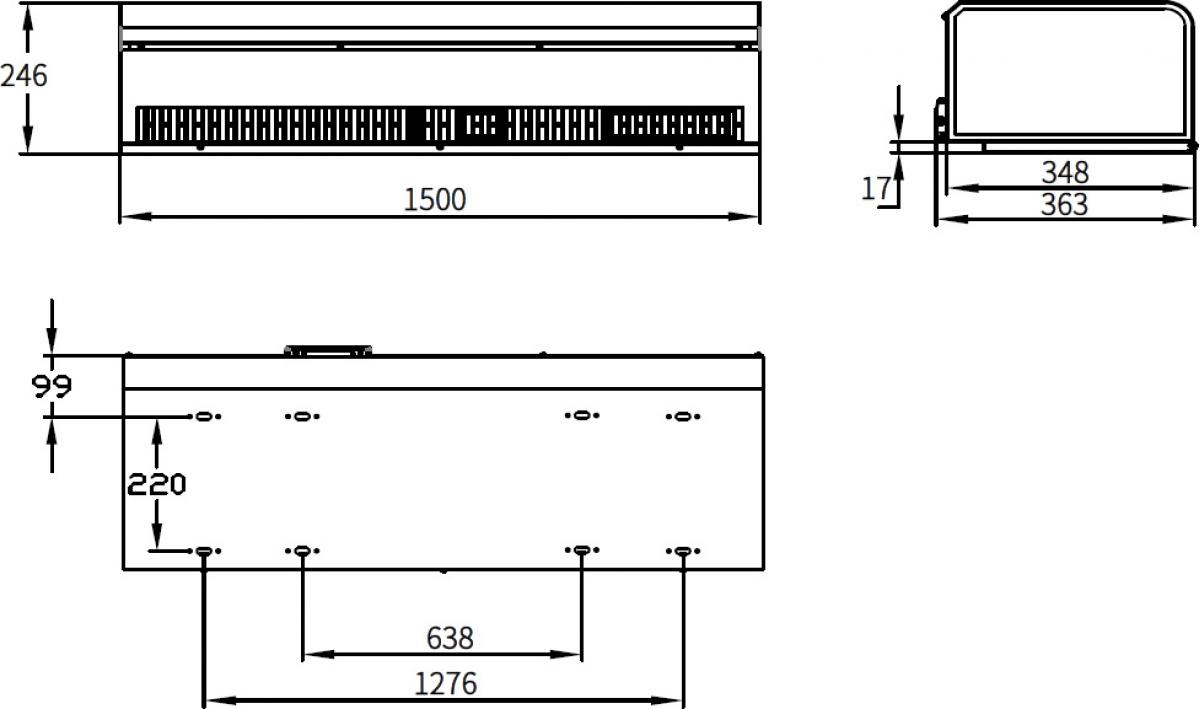

Dimensions

Model: HEAT1-ES3-150-3PH
Dimensions
HEAT1 ES3 high airflow electric air curtains
