Destratificator, three speed FLOWAIR axial fan, EPP casing, protection level IP54, air flow 1900/2200/2500 m³/h, axial fan power 110 W, max. mounting height 8 m, weight 8.9 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
LEO D - three speed FLOWAIR axial fan, EPP casing, protection level IP54
LEO DT S Air flow 1900/2200/2500 m³/h, axial fan power 110 W, with thermostat, max. mounting height 8 m, weight 8.9 kg, 2 year WARRANTY
LEO DT S
Air flow 1900/2200/2500 m³/h, axial fan power 110 W, with thermostat, max. mounting height 8 m, weight 8.9 kg, 2 year WARRANTY
LEO D S Air flow 1900/2200/2500 m³/h, axial fan power 110 W, max. mounting height 8 m, weight 8.9 kg, 2 year WARRANTY
LEO D S
Air flow 1900/2200/2500 m³/h, axial fan power 110 W, max. mounting height 8 m, weight 8.9 kg, 2 year WARRANTY
LEO DT L Air flow 2800/4200/5200 m³/h, axial fan power 280 W, with thermostat, max. mounting height 13 m, weight 13.9 kg, 2 year WARRANTY
LEO DT L
Air flow 2800/4200/5200 m³/h, axial fan power 280 W, with thermostat, max. mounting height 13 m, weight 13.9 kg, 2 year WARRANTY
LEO D L Air flow 2800/4200/5200 m³/h, axial fan power 280 W, max. mounting height 13 m, weight 13.9 kg, 2 year WARRANTY
LEO D L
Air flow 2800/4200/5200 m³/h, axial fan power 280 W, max. mounting height 13 m, weight 13.9 kg, 2 year WARRANTY
LEO DT XL Air flow 3900/6100/7200 m³/h, axial fan power 450 W, with thermostat, max. mounting height 15 m, weight 19.5 kg, 2 year WARRANTY
LEO DT XL
Air flow 3900/6100/7200 m³/h, axial fan power 450 W, with thermostat, max. mounting height 15 m, weight 19.5 kg, 2 year WARRANTY
LEO D XL Air flow 3900/6100/7200 m³/h, axial fan power 450 W, max. mounting height 15 m, weight 19.5 kg, 2 year WARRANTY
LEO D XL
Air flow 3900/6100/7200 m³/h, axial fan power 450 W, max. mounting height 15 m, weight 19.5 kg, 2 year WARRANTY
LEO D EPP - mounting height 6-12 m, protection level IP54
LEO DT 2 EPP 3V 3100/4500/5400 m³/h air flow, with thermostat, 320 W power three speed FLOWAIR axial fan, weight 13.9 kg, 2 year WARRANTY
LEO DT 2 EPP 3V
3100/4500/5400 m³/h air flow, with thermostat, 320 W power three speed FLOWAIR axial fan, weight 13.9 kg, 2 year WARRANTY
LEO D 2 EPP M 5100 m³/h air flow, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
LEO D 2 EPP M
5100 m³/h air flow, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
LEO DT 2 EPP M 5100 m³/h air flow, with thermostat, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
LEO DT 2 EPP M
5100 m³/h air flow, with thermostat, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
LEO D 2 EPP M + DRV D EC 5100 m³/h air flow, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
LEO D 2 EPP M + DRV D EC
5100 m³/h air flow, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
LEO DT 2 EPP M + DRV D EC 5100 m³/h air flow, with thermostat, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
LEO DT 2 EPP M + DRV D EC
5100 m³/h air flow, with thermostat, 170 W power german EBM modulating speed (0-100%) fan, weight 10.6 kg, 2 year WARRANTY
Model: LEO D S
General data
Max. air flow
m³/h
2500
Fan data
Power supply
V/Hz
230/50
Fan type
3-speed AC
IP / Insulation class
54 / F
Fan data at 3rd (max) speed
Air flow
m³/h
2500
Current consumption
A
0,5
Power consumption
W
110
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
56,9
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
72,0
Fan data at 2nd (mid) speed
Air flow
m³/h
2200
Current consumption
A
0,4
Power consumption
W
80
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
55,2
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
70,3
Fan data at 1st (min) speed
Air flow
m³/h
1900
Current consumption
A
0,3
Power consumption
W
70
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
49,4
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
64,9
Installation data
Max. mounting height
m
8
Max. operating temperature
°C
60
Other data
Casing
EPP - expanded polypropylene
Color
Grey (similar to RAL 9007)
Dimensions
Length
mm
550
Width
mm
480
Height
mm
345
Weight
kg
8,9

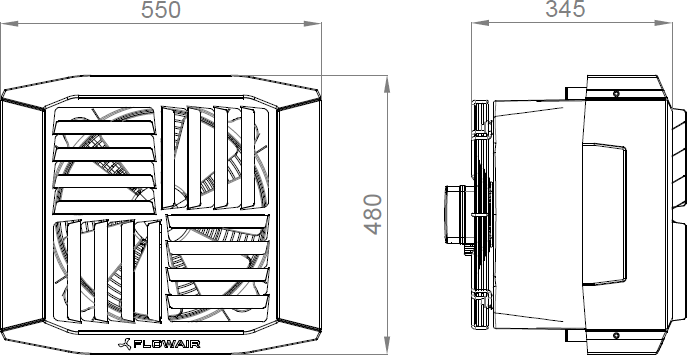

Dimensions

Model: LEO D S

Use below program or open in manufacturer webpage.

Its purpose is the improvement of heating efficiency in high buildings such as industrial buildings, warehouses, supermarkets, exhibition halls. It prevents accumulation of hot air in upper zones of heated areas. The axial fan forces hot air into the zone where people are present. The results are reduced heat loss and faster heating. The unit works continuously or is activated depending on the pre-set temperature (reg. units equipped with thermostat).
If the temperature in the upper levels of the area rises above the pre-set value the fan is switched on and the hot air is directed to the lower zones of the building.

Casing

The materials used guarantees proper parameters - both thermal and mechanical.
Recyclable.
Modern design corresponding with LEO FB.

Air blades

There are 4 sets of blades.
Stepless, manual regulation of the inclination angle of each blade for precise air stream separation.

Fan

Fan provides very efficient delivery of heated air.
Blades are made of plastic for weight reduction.
Special shape of blades ensures quiet operation of the unit.

Thermostat

Available in LEO DT.
If air temperature in upper levels rises up to the preset value the fan switches on so that the heat is brought back to lower levels.
Mounted on the lateral side of the device.

Air nozzle

Specially designed shape of the nozzle reduces noise during air flow and increases the air volume.
