Name: Destratificator - LEO D XL | Flowair
Brand: Flowair
Availability: PreOrder

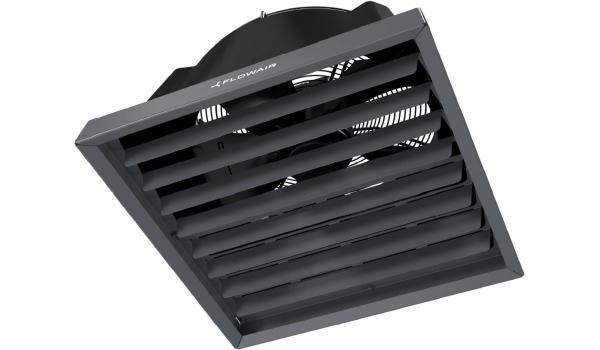

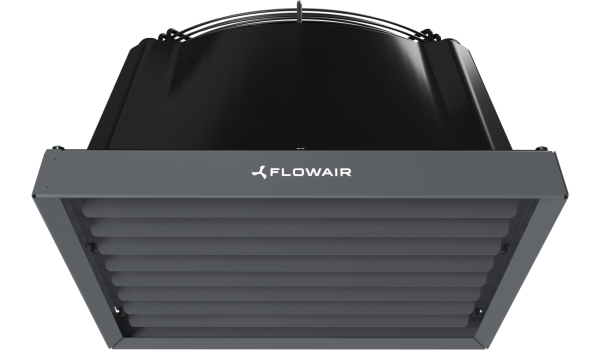

Destratificator, three speed FLOWAIR axial fan, powder coated steel housing, protection level IP54, air flow 4700/6850/7250 m³/h, electrical power consumption 251/322/473 W, max. airflow range 38 m, weight 15 kg, 2 year WARRANTY

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Models specifications
Technical data
Selection program
Documentation
Accessories, related items
Gallery, installation examples
Download PDF

Click on the Model for technical data, dimensions, accessories

LEO D - three speed FLOWAIR axial fan, powder coated steel housing, protection level IP54
	LEO D S	Air flow 1970/2270/2700 m³/h, electrical power consumption 66/82/111 W, max. airflow range 20 m, weight 8 kg, 2 year WARRANTY
		LEO D S
		Air flow 1970/2270/2700 m³/h, electrical power consumption 66/82/111 W, max. airflow range 20 m, weight 8 kg, 2 year WARRANTY
LEO D L	Air flow 2730/4390/5380 m³/h, electrical power consumption 116/201/280 W, max. airflow range 27 m, weight 11.8 kg, 2 year WARRANTY
	LEO D L
	Air flow 2730/4390/5380 m³/h, electrical power consumption 116/201/280 W, max. airflow range 27 m, weight 11.8 kg, 2 year WARRANTY
LEO D XL	Air flow 4700/6850/7250 m³/h, electrical power consumption 251/322/473 W, max. airflow range 38 m, weight 15 kg, 2 year WARRANTY
	LEO D XL
	Air flow 4700/6850/7250 m³/h, electrical power consumption 251/322/473 W, max. airflow range 38 m, weight 15 kg, 2 year WARRANTY
LEO D EPP - three speed FLOWAIR axial fan, EPP casing, protection level IP54
	LEO DT S	Air flow 1900/2200/2500 m³/h, axial fan power 110 W, with thermostat, max. mounting height 8 m, weight 8.9 kg, 2 year WARRANTY
		LEO DT S
Air flow 1900/2200/2500 m³/h, axial fan power 110 W, with thermostat, max. mounting height 8 m, weight 8.9 kg, 2 year WARRANTY
LEO DT L		Air flow 2800/4200/5200 m³/h, axial fan power 280 W, with thermostat, max. mounting height 13 m, weight 13.9 kg, 2 year WARRANTY
	LEO DT L
	Air flow 2800/4200/5200 m³/h, axial fan power 280 W, with thermostat, max. mounting height 13 m, weight 13.9 kg, 2 year WARRANTY

Model: LEO D XL

General data

Max. air flow

m³/h

7250

Maks. airflow range (measured verticaly at 0.15 m/s speed limit)

Fan data

Power supply

V/Hz

230/50

Fan type

3-speed AC

IP / Insulation class

54 / F

Fan data at 3rd (max) speed

Air flow

m³/h

7250

Air flow range (measured verticaly at 0.15 m/s speed limit)

Power consumption

472,7

Current consumption

2,11

Acoustic pressure level at a distance of 5 m from the unit, in the 1600 m³ room

dB(A)

66,1

Acoustic power level according to EN ISO 3744:2011

dB(A)

87,9

Fan data at 2nd (mid) speed

Air flow

m³/h

6850

Air flow range (measured verticaly at 0.15 m/s speed limit)

Power consumption

321,5

Current consumption

1,46

Acoustic pressure level at a distance of 5 m from the unit, in the 1600 m³ room

dB(A)

60,2

Acoustic power level according to EN ISO 3744:2011

dB(A)

82,0

Fan data at 1st (min) speed

Air flow

m³/h

4700

Air flow range (measured verticaly at 0.15 m/s speed limit)

Power consumption

250,5

Current consumption

1,29

Acoustic pressure level at a distance of 5 m from the unit, in the 1600 m³ room

dB(A)

47,4

Acoustic power level according to EN ISO 3744:2011

dB(A)

69,2

Installation data

Min. operating temperature

°C

-30

Max. operating temperature

°C

+60

Other data

Casing

Powder coated steel

Color

Grey (RAL 7016)

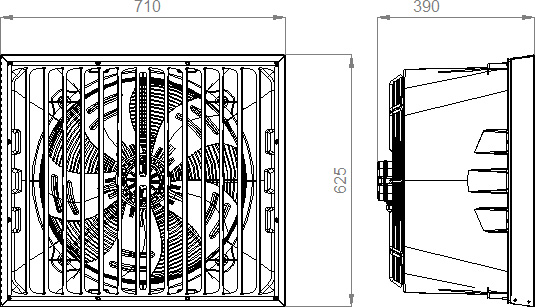

Dimensions

Length

710

Width

625

Height

390

Weight

Dimensions

Model: LEO D XL

Use below program or open in manufacturer webpage.

LEO D destratificator

Manuals 7.8 MB

Declarations of conformity 760 KB

Brochures 405 KB

Catalogue 2.2 MB

BIM objects 2.2 MB

LEO D EPP destratificator

Manuals 1.6 MB

Declarations of conformity 661 KB

Catalogue 1.7 MB

AutoCAD drawings 3.3 MB

BIM objects 4.4 MB

TS controller for equipment with 3-speed fans

Manuals 187 KB

Declarations of conformity 211 KB

HMI programable controller for equipment with 3-speed fans

Manuals 811 KB

Declarations of conformity 1.5 MB

MODBUS protocol for connection to BMS 148 KB

T-box controller

Manuals 22.7 MB

Declarations of conformity 643 KB

MODBUS protocol for connection to BMS 6.2 MB

T-box Zone controller

Manuals 7.4 MB

Declarations of conformity 643 KB

MODBUS protocol for connection to BMS 1.7 MB

DRV D control module for 3-speed destratificators

Manuals 817 KB

RX control signal splitter for equipment with 3-speed fans

Manuals 2 MB

Declarations of conformity 210 KB

03.431 Controller for destratificators with two temperature sensors

Manuals 218 KB

Declarations of conformity 387 KB

Brochures 57 KB

Model: LEO D XL

Thermostats
	RA	Room thermostat, IP30
	RA
	Room thermostat, IP30
Control systems for standart units
	TS	3-step fan speed regulator with built-in room thermostat
	TS
	3-step fan speed regulator with built-in room thermostat
	RX	Control signal splitter for 3-step fans, single TS or HMI control panel allows to control up to 6 pcs. 3V fan heaters, up to 6 pcs. ELiS T air curtains or up to 3 pcs. ELiS G industrial air curtains, it is possible to chain up to 3 RX splitters to be able to control up to 18 units, possibility to control ON/OFF valves and connect DCet/DCm door contact
	RX
	Control signal splitter for 3-step fans, single TS or HMI control panel allows to control up to 6 pcs. 3V fan heaters, up to 6 pcs. ELiS T air curtains or up to 3 pcs. ELiS G industrial air curtains, it is possible to chain up to 3 RX splitters to be able to control up to 18 units, possibility to control ON/OFF valves and connect DCet/DCm door contact
FLOWAIR control system
	T-box	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, can be connected to BMS
	T-box
	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, can be connected to BMS
	T-box Zone	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, multi-zone control - can create up to 31 zones and control each unit independently, can be connected to BMS
	T-box Zone
	Intelligent controller with touch screen, built-in room thermostat and programable week calendar, one controller can control up to 31 units, multi-zone control - can create up to 31 zones and control each unit independently, can be connected to BMS
	DRV D	Control module for LEO D/DT S/L/XL units, allows to control them with T-box control panel, each unit requires seperate DRV module, integrated PT-1000 temperature sensor, up to 31 units can be connected together, allows to control units via BMS
	DRV D
	Control module for LEO D/DT S/L/XL units, allows to control them with T-box control panel, each unit requires seperate DRV module, integrated PT-1000 temperature sensor, up to 31 units can be connected together, allows to control units via BMS
Destratification fans control systems
	03.431	Controller for destratificators that records the temperature difference between the floor and the ceiling with two temperature sensors and compares this with user given values, if the temperature difference between floor and the ceiling goes higher than the user value the relay switches the ceiling fans on, there is second user value which handles the switch off point, the current temperatures of the ceiling and the floor are constantly shown in an alternating display, protection class IP54, max. permissible current 4 A
	03.431
	Controller for destratificators that records the temperature difference between the floor and the ceiling with two temperature sensors and compares this with user given values, if the temperature difference between floor and the ceiling goes higher than the user value the relay switches the ceiling fans on, there is second user value which handles the switch off point, the current temperatures of the ceiling and the floor are constantly shown in an alternating display, protection class IP54, max. permissible current 4 A
