Electric heater, three-phase connection, three speed FLOWAIR axial fan, horizontal or vertical mounting (not allowed to mount at an angle!), can be connected to BMS, three steps heating power: 8.8/16.3/22.8 kW, air flow 1700/2800/4250 m³/h, fan power 330 W, max. mounting height on the wall/ceiling 6/9.5 m, weight 27.8 kg, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
LEO EL BMS - three-phase connection, three speed FLOWAIR axial fan, horizontal or vertical mounting (not allowed to mount at an angle!), can be connected to BMS
LEO EL S BMS Two steps heating power: 6/10.8 kW, air flow 1250/1600/2000 m³/h, fan power 130 W, max. mounting height on the wall/ceiling 3/6 m, weight 19.7 kg, 2 year WARRANTY
LEO EL S BMS
Two steps heating power: 6/10.8 kW, air flow 1250/1600/2000 m³/h, fan power 130 W, max. mounting height on the wall/ceiling 3/6 m, weight 19.7 kg, 2 year WARRANTY
LEO EL L BMS Three steps heating power: 8.8/16.3/22.8 kW, air flow 1700/2800/4250 m³/h, fan power 330 W, max. mounting height on the wall/ceiling 6/9.5 m, weight 27.8 kg, 2 year WARRANTY
LEO EL L BMS
Three steps heating power: 8.8/16.3/22.8 kW, air flow 1700/2800/4250 m³/h, fan power 330 W, max. mounting height on the wall/ceiling 6/9.5 m, weight 27.8 kg, 2 year WARRANTY
Model: LEO EL L BMS
General data
Adjustable heating power (3 steps)
kW
8,8 / 16,3 / 22,8
Max. air flow
m³/h
4250
Fan data
Fan type
3-speed AC
IP / Insulation class
54 / F
Steps
3
Fan data at 3rd (max) speed
Air flow
m³/h
4250
Air flow range (measured horizontaly at 0.5 m/s speed limit)
m
24,0
Air flow range (measured verticaly at 0.5 m/s speed limit)
m
6,0
Current consumption
A
1,4
Power consumption
W
330
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
64,1
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
79,2
Fan data at 2nd (mid) speed
Air flow
m³/h
2800
Air flow range (measured horizontaly at 0.5 m/s speed limit)
m
15,0
Air flow range (measured verticaly at 0.5 m/s speed limit)
m
3,8
Current consumption
A
1,2
Power consumption
W
240
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
54,5
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
69,6
Fan data at 1st (min) speed
Air flow
m³/h
1700
Air flow range (measured horizontaly at 0.5 m/s speed limit)
m
9,5
Air flow range (measured verticaly at 0.5 m/s speed limit)
m
2,3
Current consumption
A
0,6
Power consumption
W
120
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
42,1
Max. acoustic power level according to EN ISO 3744:2011
dB(A)
57,2
Installation data
Installation
Vertical or horizontal
Max. operating temperature
°C
50
Other data
Casing
Steel, powder coated
Color
Grey / graphite (ral 7016)

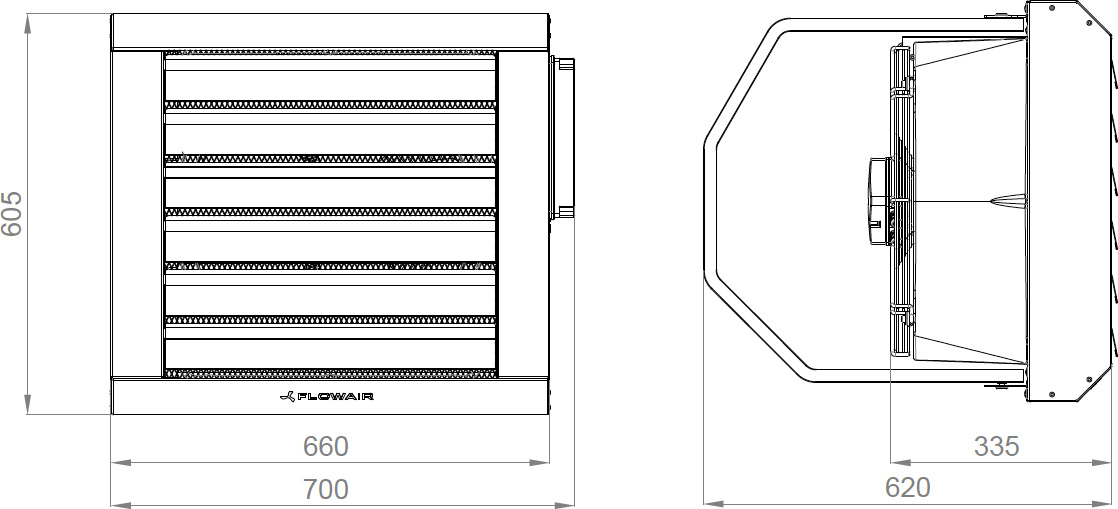

Dimensions
Width
mm
700
Depth
mm
335
Height
mm
605
Weight
kg
27,8

Dimensions

Model: LEO EL L BMS
Industrial buildings

Industrial buildings - LEO EL heaters are used to heat facilities of various cubage such as: industrial and production halls, workshops, car showrooms, warehouses, supermarkets, pavilions, sports facilities and buildings of worship, etc.

Savings

Savings - The heat exchanger is made of six rows of electric heaters with radiators which increase the area of heat transfer. The shape and geometrical placement of the heaters in relation to one another ensure maximum use of its heating capacity. The materials used for its production guarantee long fault free operation.

Automatics

Automatics - The heater is equipped with power – control – safety automatics which protect the heater or fan from overheating. It comes with an interior thermostat with a switch controlling the amount of heat. The heater can operate in three modes: summer (fan only), low heat and high heat.

Selection

Selection - In order to match the device with a certain facility, you should contact us at ORFĖJAS Ltd.
