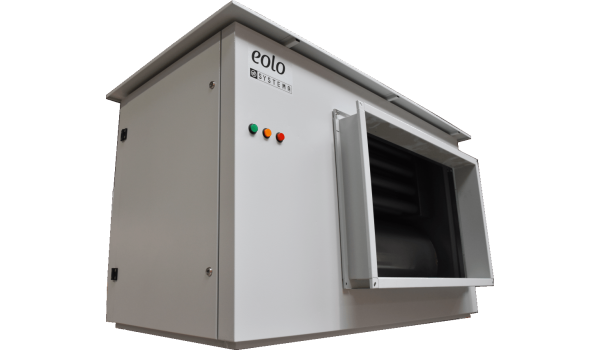

Gas heater - EOLO NBC 100 AE MIX | Systema

Name: Gas heater - EOLO NBC 100 AE MIX | Systema
Brand: Systema
Availability: PreOrder

Select the product type and model:

Type: Model:

Gas heater, for external installation on wall or roof, fully insulated casing, non-condensing version, with axial fan for free blowing inside room, pre-mix burner, 71-105 kW modulating thermal power capacity, air flow 11000 m³/h, air throw 30 m, fan power 1.48 kW, max. gas (G20) consumption 11.11 m³/h, weight 186 kg, 2 year WARRANTY

Manufacturer:

Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer

Models specifications
Documentation
Accessories, related items
Download PDF

Click on the Model for technical data, dimensions, accessories

EOLO NBC AE MIX - for external installation on wall or roof, fully insulated casing, non-condensing version, with axial fan for free blowing inside room, pre-mix burner
	EOLO NBC 25 AE MIX	15-22 kW modulating thermal power capacity, air flow 2900 m³/h, air throw 13 m, fan power 0.26 kW, max. gas (G20) consumption 2.33 m³/h, weight 62 kg, 2 year WARRANTY
		EOLO NBC 25 AE MIX
		15-22 kW modulating thermal power capacity, air flow 2900 m³/h, air throw 13 m, fan power 0.26 kW, max. gas (G20) consumption 2.33 m³/h, weight 62 kg, 2 year WARRANTY
	EOLO NBC 35 AE MIX	20-32 kW modulating thermal power capacity, air flow 3600 m³/h, air throw 17 m, fan power 0.35 kW, max. gas (G20) consumption 3.39 m³/h, weight 74 kg, 2 year WARRANTY
		EOLO NBC 35 AE MIX
		20-32 kW modulating thermal power capacity, air flow 3600 m³/h, air throw 17 m, fan power 0.35 kW, max. gas (G20) consumption 3.39 m³/h, weight 74 kg, 2 year WARRANTY
	EOLO NBC 45 AE MIX	28-43 kW modulating thermal power capacity, air flow 4500 m³/h, air throw 19 m, fan power 0.56 kW, max. gas (G20) consumption 4.55 m³/h, weight 89 kg, 2 year WARRANTY
	EOLO NBC 45 AE MIX
	28-43 kW modulating thermal power capacity, air flow 4500 m³/h, air throw 19 m, fan power 0.56 kW, max. gas (G20) consumption 4.55 m³/h, weight 89 kg, 2 year WARRANTY
EOLO NBC 55 AE MIX	34-52 kW modulating thermal power capacity, air flow 5800 m³/h, air throw 23 m, fan power 0.71 kW, max. gas (G20) consumption 5.5 m³/h, weight 118 kg, 2 year WARRANTY
	EOLO NBC 55 AE MIX
	34-52 kW modulating thermal power capacity, air flow 5800 m³/h, air throw 23 m, fan power 0.71 kW, max. gas (G20) consumption 5.5 m³/h, weight 118 kg, 2 year WARRANTY
EOLO NBC 65 AE MIX	42-63 kW modulating thermal power capacity, air flow 7000 m³/h, air throw 25 m, fan power 0.69 kW, max. gas (G20) consumption 6.67 m³/h, weight 128 kg, 2 year WARRANTY
	EOLO NBC 65 AE MIX
	42-63 kW modulating thermal power capacity, air flow 7000 m³/h, air throw 25 m, fan power 0.69 kW, max. gas (G20) consumption 6.67 m³/h, weight 128 kg, 2 year WARRANTY
EOLO NBC 85 AE MIX	56-86 kW modulating thermal power capacity, air flow 9000 m³/h, air throw 27 m, fan power 1.12 kW, max. gas (G20) consumption 9.1 m³/h, weight 148 kg, 2 year WARRANTY
	EOLO NBC 85 AE MIX
	56-86 kW modulating thermal power capacity, air flow 9000 m³/h, air throw 27 m, fan power 1.12 kW, max. gas (G20) consumption 9.1 m³/h, weight 148 kg, 2 year WARRANTY
EOLO NBC 100 AE MIX	71-105 kW modulating thermal power capacity, air flow 11000 m³/h, air throw 30 m, fan power 1.48 kW, max. gas (G20) consumption 11.11 m³/h, weight 186 kg, 2 year WARRANTY
	EOLO NBC 100 AE MIX
	71-105 kW modulating thermal power capacity, air flow 11000 m³/h, air throw 30 m, fan power 1.48 kW, max. gas (G20) consumption 11.11 m³/h, weight 186 kg, 2 year WARRANTY
EOLO BC AE MIX - for external installation on wall or roof, fully insulated casing, condensing version, with axial fan for free blowing inside room, pre-mix burner
	EOLO BC 25 AE MIX	8-22 kW modulating thermal power capacity, air flow 2900 m³/h, air throw 13 m, fan power 0.26 kW, max. gas (G20) consumption 2.33 m³/h, weight 62 kg, 2 year WARRANTY
		EOLO BC 25 AE MIX
		8-22 kW modulating thermal power capacity, air flow 2900 m³/h, air throw 13 m, fan power 0.26 kW, max. gas (G20) consumption 2.33 m³/h, weight 62 kg, 2 year WARRANTY
	EOLO BC 35 AE MIX	11-32 kW modulating thermal power capacity, air flow 3600 m³/h, air throw 17 m, fan power 0.35 kW, max. gas (G20) consumption 3.39 m³/h, weight 74 kg, 2 year WARRANTY
		EOLO BC 35 AE MIX
		11-32 kW modulating thermal power capacity, air flow 3600 m³/h, air throw 17 m, fan power 0.35 kW, max. gas (G20) consumption 3.39 m³/h, weight 74 kg, 2 year WARRANTY
	EOLO BC 45 AE MIX	15-43 kW modulating thermal power capacity, air flow 4500 m³/h, air throw 19 m, fan power 0.56 kW, max. gas (G20) consumption 4.55 m³/h, weight 89 kg, 2 year WARRANTY
	EOLO BC 45 AE MIX
	15-43 kW modulating thermal power capacity, air flow 4500 m³/h, air throw 19 m, fan power 0.56 kW, max. gas (G20) consumption 4.55 m³/h, weight 89 kg, 2 year WARRANTY
EOLO BC 55 AE MIX	18-52 kW modulating thermal power capacity, air flow 5800 m³/h, air throw 23 m, fan power 0.71 kW, max. gas (G20) consumption 5.5 m³/h, weight 118 kg, 2 year WARRANTY
	EOLO BC 55 AE MIX
	18-52 kW modulating thermal power capacity, air flow 5800 m³/h, air throw 23 m, fan power 0.71 kW, max. gas (G20) consumption 5.5 m³/h, weight 118 kg, 2 year WARRANTY
EOLO BC 65 AE MIX	22-63 kW modulating thermal power capacity, air flow 7000 m³/h, air throw 25 m, fan power 0.69 kW, max. gas (G20) consumption 6.67 m³/h, weight 128 kg, 2 year WARRANTY
	EOLO BC 65 AE MIX
	22-63 kW modulating thermal power capacity, air flow 7000 m³/h, air throw 25 m, fan power 0.69 kW, max. gas (G20) consumption 6.67 m³/h, weight 128 kg, 2 year WARRANTY
EOLO BC 85 AE MIX	28-86 kW modulating thermal power capacity, air flow 9000 m³/h, air throw 27 m, fan power 1.12 kW, max. gas (G20) consumption 9.1 m³/h, weight 148 kg, 2 year WARRANTY
	EOLO BC 85 AE MIX
	28-86 kW modulating thermal power capacity, air flow 9000 m³/h, air throw 27 m, fan power 1.12 kW, max. gas (G20) consumption 9.1 m³/h, weight 148 kg, 2 year WARRANTY
EOLO BC 100 AE MIX	32-103 kW modulating thermal power capacity, air flow 11000 m³/h, air throw 30 m, fan power 1.48 kW, max. gas (G20) consumption 11.11 m³/h, weight 186 kg, 2 year WARRANTY
	EOLO BC 100 AE MIX
	32-103 kW modulating thermal power capacity, air flow 11000 m³/h, air throw 30 m, fan power 1.48 kW, max. gas (G20) consumption 11.11 m³/h, weight 186 kg, 2 year WARRANTY

EOLO BC MIX external condensing gas fired heaters

Manuals 3.2 MB

Declarations of conformity 4.4 MB

Brochures 3.5 MB

Control panel user instructions 413 KB

Control panel manual 841 KB

AutoCAD drawings 10.5 MB

EOLO NBC MIX external non-condensing gas fired heaters

Manuals 6.6 MB

Declarations of conformity 4.4 MB

Brochures 3.5 MB

Control panel user instructions 413 KB

Control panel manual 841 KB

AutoCAD drawings 10.5 MB

SCM850 control panel

Manuals 751 KB

MODBUS protocol for connection to BMS 241 KB

Model: EOLO NBC 100 AE MIX

Mixing chambers for EOLO NBC/BC units, can be used with units equipped with axial AE fans if no filters are used or only fresh outdoor air is filtered or only recirculated room air is filtered, if fresh outdoor air is filtered together with recirculated room air - units with centrifugal AC fans must be used
	04CNCO8108	Mixing chamber for external EOLO NBC/BC 100 heaters, insulated, outdoor air is drawn from behind, recirculated air is drawn from below (type C) or from above (type D)
	04CNCO8108
	Mixing chamber for external EOLO NBC/BC 100 heaters, insulated, outdoor air is drawn from behind, recirculated air is drawn from below (type C) or from above (type D)
Fan housings for external EOLO NBC/BC MIX units
	04CNCO92??	Fan housing for external EOLO NBC/BC AE MIX units with axial fan, used if heater is recirculating 100% of room air, insulated, recirculated air is drawn from below (type C) or from above (type D)
	04CNCO92??
	Fan housing for external EOLO NBC/BC AE MIX units with axial fan, used if heater is recirculating 100% of room air, insulated, recirculated air is drawn from below (type C) or from above (type D)
External air inlets
	94AKKO2007	Outdoor air intake with antirain fins for external EOLO NBC/BC 100 heaters with air mixing chamber where outdoor air is drawn from behind (type C or D)
	94AKKO2007
	Outdoor air intake with antirain fins for external EOLO NBC/BC 100 heaters with air mixing chamber where outdoor air is drawn from behind (type C or D)
Internal air supply grille
	04CNBC????	Internal air supply grille for external EOLO NBC/BC heaters, dimensions mm, horizontal fins
	04CNBC????
	Internal air supply grille for external EOLO NBC/BC heaters, dimensions mm, horizontal fins
Filters frames
	94PAKF0606	Filter frame for mixing chamber of EOLO NBC/BC 100 heater, required if filter for recirculated indoor air is added
	94PAKF0606
	Filter frame for mixing chamber of EOLO NBC/BC 100 heater, required if filter for recirculated indoor air is added
Air filters
	04CNFI2540/WG	Air filter for mixing chamber of EOLO NBC/BC 100 heater, suitable for filtering both recirculated and outdoor air
	04CNFI2540/WG
	Air filter for mixing chamber of EOLO NBC/BC 100 heater, suitable for filtering both recirculated and outdoor air
Control panels
	11ELST9524	Control panel SCP674V122T2 for 1 EOLO heater, delivered with IP54 protection class PVC box
	11ELST9524
	Control panel SCP674V122T2 for 1 EOLO heater, delivered with IP54 protection class PVC box
	11ELPL9417/WG	PCB board SCP674V202, required for SCP674V122T2 control panel connection to non-condensing EOLO NBC units
	11ELPL9417/WG
	PCB board SCP674V202, required for SCP674V122T2 control panel connection to non-condensing EOLO NBC units
Additional accessories for gas fired heaters
	04CEGL3001	Air temperature probe, internal - IP20 EOLO
	04CEGL3001
	Air temperature probe, internal - IP20 EOLO
	04CEGL3003	Air temperature probe, internal - IP56 EOLO
	04CEGL3003
	Air temperature probe, internal - IP56 EOLO
	11ELSI0200/WG	Actuator LM230ASR 0-10V
	11ELSI0200/WG
	Actuator LM230ASR 0-10V
	11ELPO0201	Positioner 0-10V, can be used with 0-10V modulating actuators for comfortable dampers position control
	11ELPO0201
	Positioner 0-10V, can be used with 0-10V modulating actuators for comfortable dampers position control
	04CNAC0695	Protection against air filter clogging, when the pressure switch is activated, the heater is switched off and the corresponding message is displayed on the control panel
	04CNAC0695
	Protection against air filter clogging, when the pressure switch is activated, the heater is switched off and the corresponding message is displayed on the control panel
Mounting brackets
	04CNST2586	Wall mounting bracket for external EOLO NBC/BC 100 MIX or internal EOLO NBC/BC 100 heater with air mixing chamber where outdoor air is drawn from behind (type C or D)
	04CNST2586
	Wall mounting bracket for external EOLO NBC/BC 100 MIX or internal EOLO NBC/BC 100 heater with air mixing chamber where outdoor air is drawn from behind (type C or D)
Service
	ORF PDDB	Gas fired air heater comissioning (electrical power connection, gas connection and fumes extraction checking of the installed device; checking with a detector for gas leakage from external gas connection valve to the device burner; measuring the actual gas pressure before and after the regulator when the device is operating; adjusting the burner power according to the manufacturer's instructions; adjusting the device for efficient operation using a flue gas analyzer; checking the operation of safety automatic devices; checking connection of the room thermostat)
	ORF PDDB
	Gas fired air heater comissioning (electrical power connection, gas connection and fumes extraction checking of the installed device; checking with a detector for gas leakage from external gas connection valve to the device burner; measuring the actual gas pressure before and after the regulator when the device is operating; adjusting the burner power according to the manufacturer's instructions; adjusting the device for efficient operation using a flue gas analyzer; checking the operation of safety automatic devices; checking connection of the room thermostat)
