Diffuser, swirl, round form, manually and individually adjustable each diffuser blade allows to use it in either cooling and heating function, manufactured from powder coated galvanized steel, RAL9016 color, external diameter Ø845 mm, opening diameter Ø705 mm
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Attention! We do not stock SAW-POL ventilation components, all products from this supplier are custom made and delivered to the customer directly from the manufacturer's warehouse. We are sorry but for this reason we can not accept orders for individual goods, we only accept orders for the high quantity of SAW-POL products.
Click on the Model for technical data, dimensions, accessories
NWO-12 - swirl, round form, manually and individually adjustable each diffuser blade allows to use it in either cooling and heating function, manufactured from powder coated galvanized steel, RAL9016 color
NWO-12/250 External diameter Ø305 mm, opening diameter Ø245 mm
NWO-12/250
External diameter Ø305 mm, opening diameter Ø245 mm
NWO-12/315 External diameter Ø370 mm, opening diameter Ø310 mm
NWO-12/315
External diameter Ø370 mm, opening diameter Ø310 mm
NWO-12/355 External diameter Ø410 mm, opening diameter Ø350 mm
NWO-12/355
External diameter Ø410 mm, opening diameter Ø350 mm
NWO-12/400 External diameter Ø475 mm, opening diameter Ø395 mm
NWO-12/400
External diameter Ø475 mm, opening diameter Ø395 mm
NWO-12/500 External diameter Ø615 mm, opening diameter Ø495 mm
NWO-12/500
External diameter Ø615 mm, opening diameter Ø495 mm
NWO-12/630 External diameter Ø745 mm, opening diameter Ø625 mm
NWO-12/630
External diameter Ø745 mm, opening diameter Ø625 mm
NWO-12/710 External diameter Ø845 mm, opening diameter Ø705 mm
NWO-12/710
External diameter Ø845 mm, opening diameter Ø705 mm
NWO-12/800 External diameter Ø935 mm, opening diameter Ø795 mm
NWO-12/800
External diameter Ø935 mm, opening diameter Ø795 mm

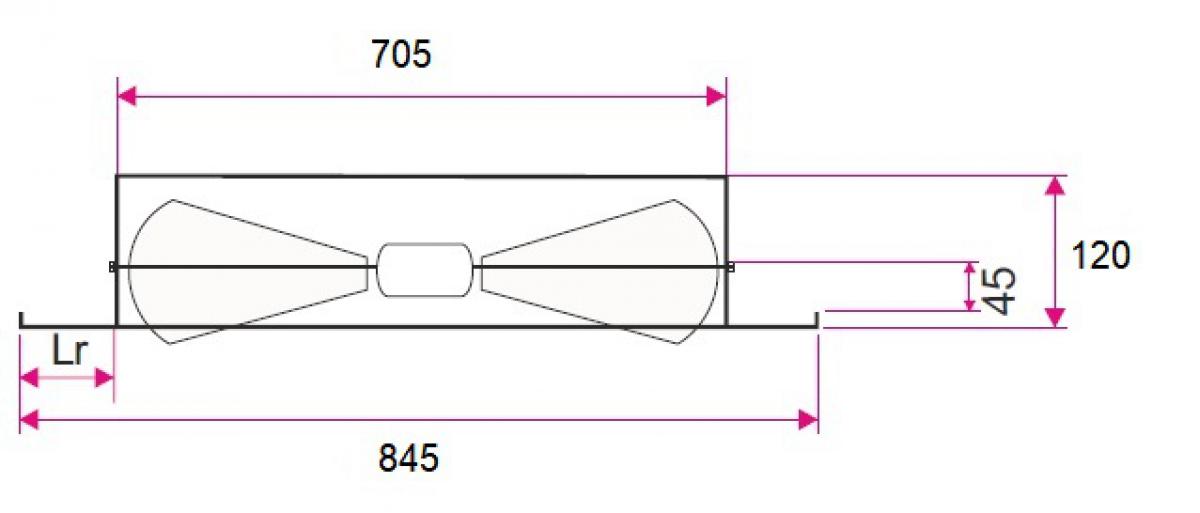

Dimensions

Model: NWO-12/710

Round swirl diffusers NWO-12, with the function of changing the direction of the ventilation, willingly used in the industry (production halls) and wherever to increase the level of comfort mentions a large amount of air. They have also the use in public buildings such as restaurants, conference rooms and hospitals.
Changing the direction of the airflow is manually and individually for each blade. With such a possibility diffuser NWO-12 can operate both in cooling function and heating.


Diffusers have the Hygienic Certificate HK/K/0522/01/2016

Material and workmanship

Diffusers are made of galvanised sheet steel powder coated, standard on the white color 9016 or on request to any color from the RAL palette. On request can be made of stainless steel or aluminum. Ceiling diffusers NWO-12 can be equipped with modular plate, for example size 595x595mm adapted for installation in ceiling suspended.

NWO-12 round swirl diffuser
Declarations of conformity 877 KB
Catalogue 393 KB
Hygienic certificate 1.1 MB
