Click on the Model for technical data, dimensions, accessories

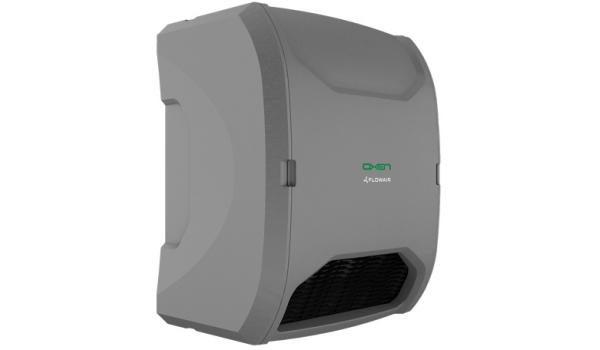

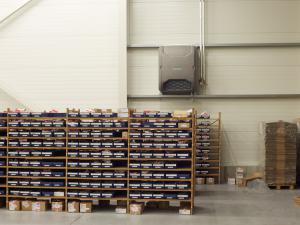

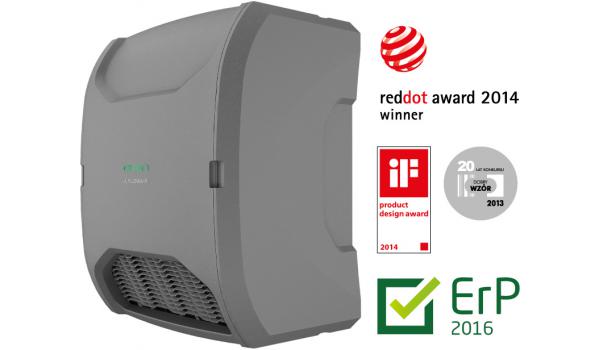

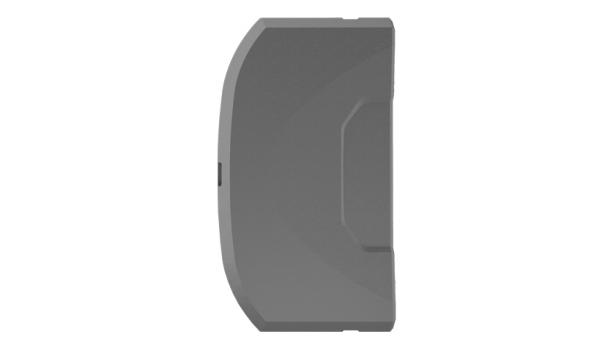

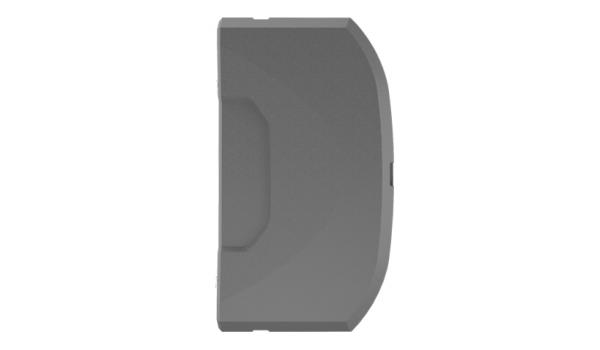

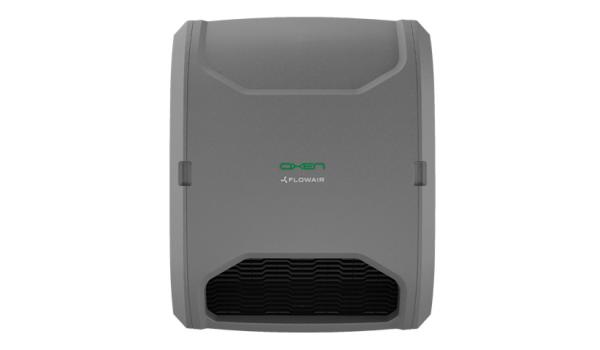

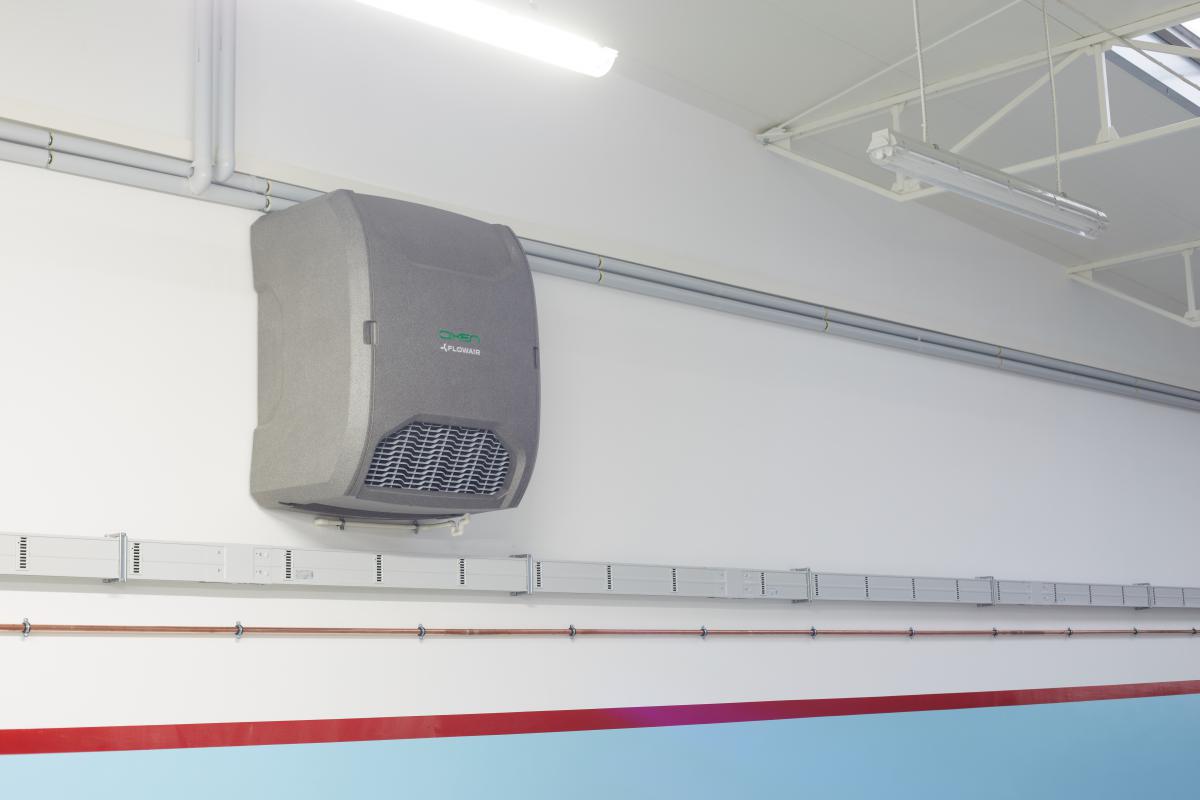

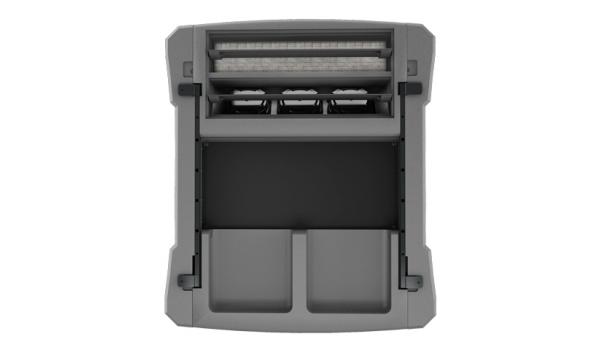

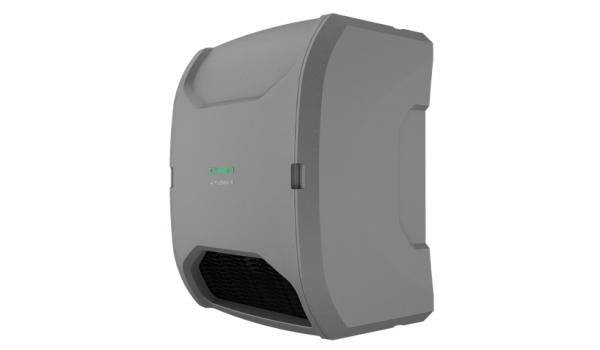

OXeN - no ducts, expanded polypropylene (EPP) casing, aluminum cross flow heat exchangers, fans by german manufacturer EBM, vertical version for wall mounting, delivered with a wall transition OxC (1 piece)
OXeN-X2-N-1.2-V Air flow 150-1200 m³/val., air stream range 15 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 75.1 kg, 2 year WARRANTY
OXeN-X2-N-1.2-V
Air flow 150-1200 m³/val., air stream range 15 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 75.1 kg, 2 year WARRANTY
OXeN-X2-W-1.2-V With additional 10 kW (water 80/60°C, air 5°C) water heat exchanger, air flow 150-1200 m³/val., air stream range 15 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 77.5 kg, 2 year WARRANTY
OXeN-X2-W-1.2-V
With additional 10 kW (water 80/60°C, air 5°C) water heat exchanger, air flow 150-1200 m³/val., air stream range 15 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 77.5 kg, 2 year WARRANTY
OXeN-X2-E-1.2-V With additional 3-steps 3.5/5.5/8.5 kW electric heat exchanger, air flow 1200 m³/val., air stream range 15 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption (without additional heat exchanger) 420 W, protection class IP42, weight 82.5 kg, 2 year WARRANTY
OXeN-X2-E-1.2-V
With additional 3-steps 3.5/5.5/8.5 kW electric heat exchanger, air flow 1200 m³/val., air stream range 15 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption (without additional heat exchanger) 420 W, protection class IP42, weight 82.5 kg, 2 year WARRANTY

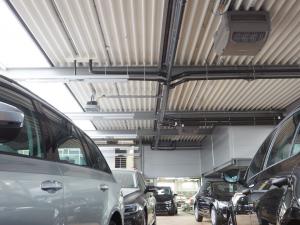

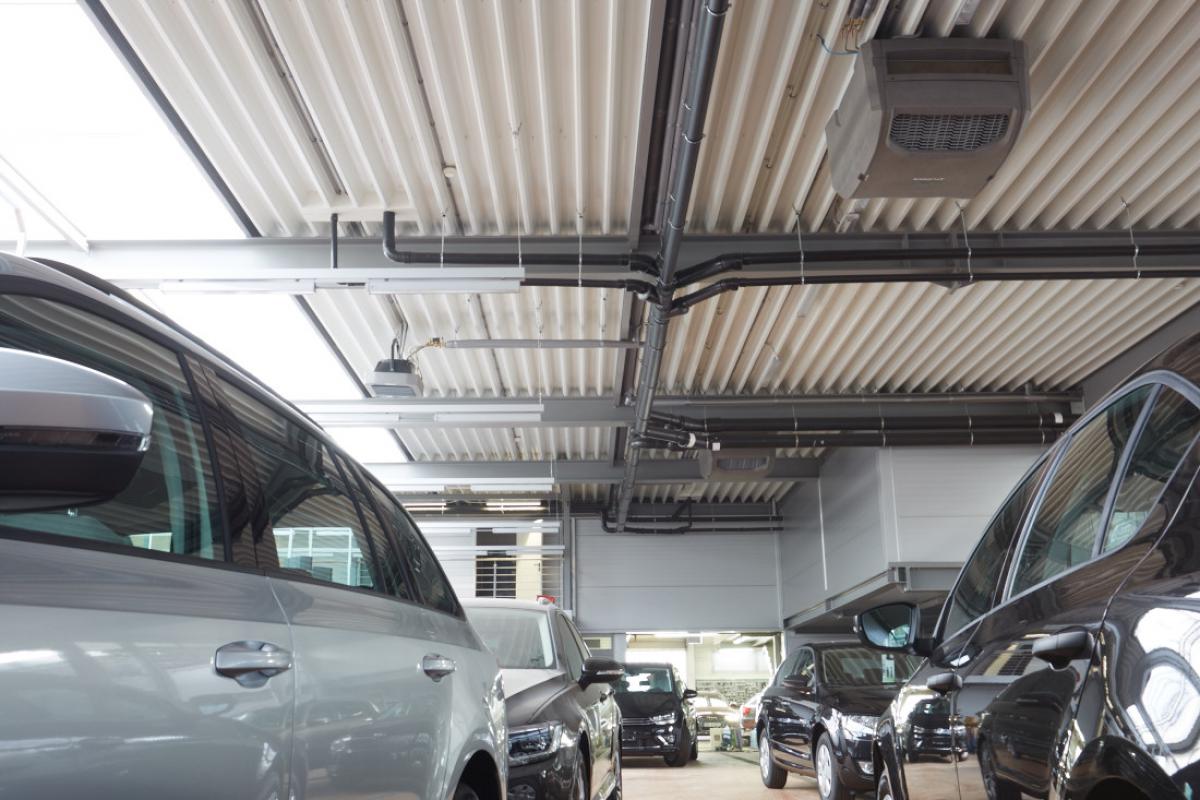

OXeN - no ducts, expanded polypropylene (EPP) casing, aluminum cross flow heat exchangers, modulating fans by german manufacturer EBM, horizontal version for ceiling mounting, delivered with a adapter OxC2-H (1 piece) dedicated for connecting unit with extension duct OxE-H
OXeN-X2-N-1.2-H Air flow 150-1200 m³/val., air stream range 4.5 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 78.1 kg, 2 year WARRANTY
OXeN-X2-N-1.2-H
Air flow 150-1200 m³/val., air stream range 4.5 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 78.1 kg, 2 year WARRANTY
OXeN-X2-W-1.2-H With additional 10 kW (water 80/60°C, air 5°C) water heat exchanger, air flow 150-1200 m³/val., air stream range 4.5 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 80.5 kg, 2 year WARRANTY
OXeN-X2-W-1.2-H
With additional 10 kW (water 80/60°C, air 5°C) water heat exchanger, air flow 150-1200 m³/val., air stream range 4.5 m, heat recovery efficiency 74.7-80.9%, acoustic pressure level 49 dB(A), maks. power consumption 420 W, protection class IP42, weight 80.5 kg, 2 year WARRANTY
OXeN heat recovery unit
Manuals 2.2 MB
Declarations of conformity 347 KB
Brochures 738 KB
Catalogue 9.6 MB
Hygienic certificate 592 KB
AutoCAD drawings 1.2 MB
BIM objects 5.1 MB

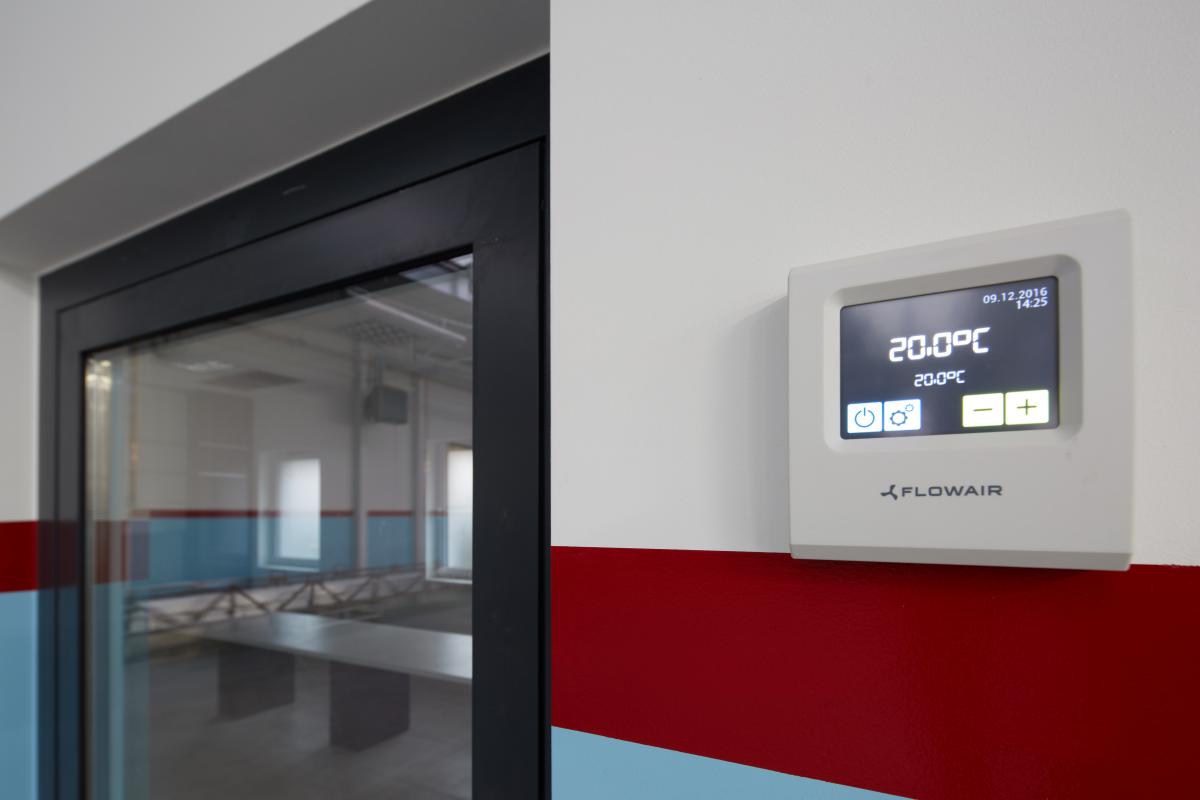

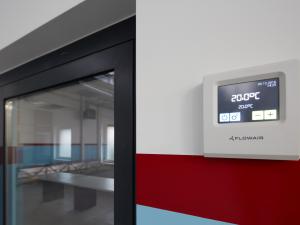

T-box controller
Manuals 22.7 MB
Declarations of conformity 643 KB
MODBUS protocol for connection to BMS 6.2 MB
