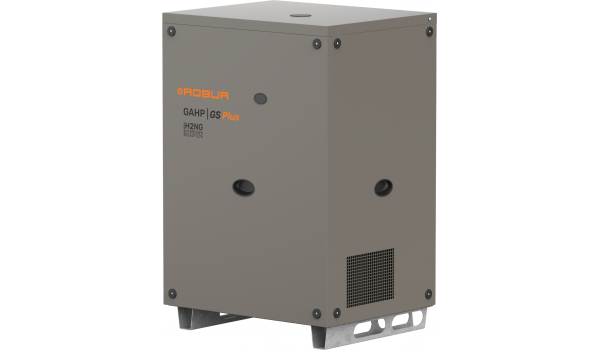

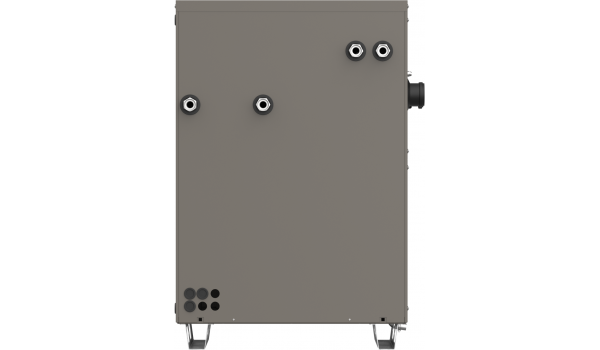

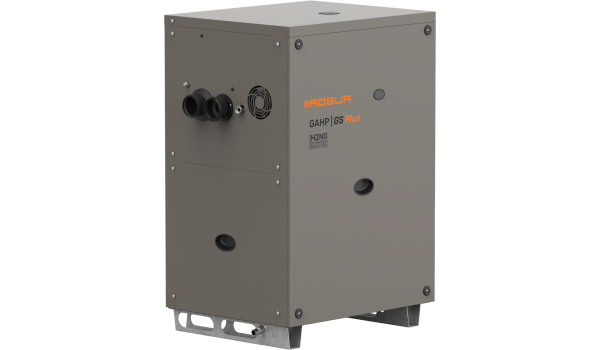

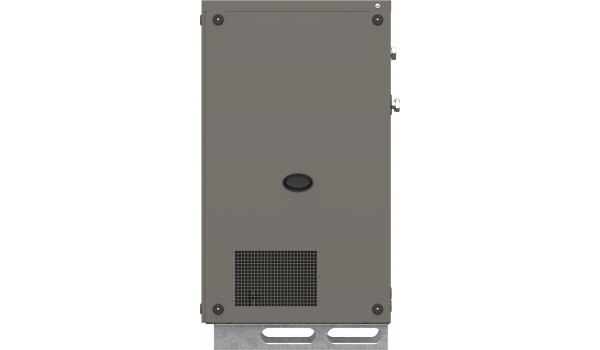

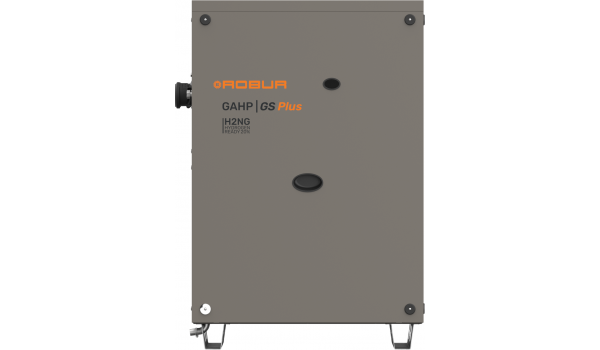

Gas absorption heat pump - GAHP-GS Plus | Robur

Select the product model:

Gas absorption heat pump, geothermal, takes heat from Ground and gives it to Water for heating or domestic hot water production, maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 43.0 kW (B0/W35), G.U.E. gas utilization efficiency 165% (B0/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.41 kW, sound pressure level (at 5 m distance) 44.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 287 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
GAHP-GS Plus - geothermal, takes heat from Ground and gives it to Water for heating or domestic hot water production
GAHP-GS Plus Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 43.0 kW (B0/W35), G.U.E. gas utilization efficiency 165% (B0/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.41 kW, sound pressure level (at 5 m distance) 44.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 287 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-GS Plus
Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 43.0 kW (B0/W35), G.U.E. gas utilization efficiency 165% (B0/W35), A++ energy class ErP on 55°C operation, gas (G20) consumption 2.79 m³/h, electrical power consumption 0.41 kW, sound pressure level (at 5 m distance) 44.1 dB(A), water connection 1¼", electrical degree of protection IP 25, weight 287 kg, outside working temperature -15°C/+45°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
Model: GAHP-GS Plus
Heating operation mode data
Seasonal space heating energy efficiency class (55°C operation)
ErP
A++
Seasonal space heating energy efficiency class (35°C operation)
ErP
A+
G.U.E. gas utilization efficiency at 35°C water and 0°C ground temperature
%
165
Heating capacity at 35°C water and 0°C ground temperature
kW
43,0
Heating water flow (nominal / maximum / minimum)
l/h
3000 / 4000 / 2000
Water pressure drop (outlet water at 35°C, at nominal water flow)
bar
0,46
Maximum outlet water temperature (heating / DHW)
°C
+65 / +70
Maximum inlet water temperature (heating / DHW)
°C
+55 / +60
Minimum inlet water temperature in continuous operation
°C
+30
Operating temperature range
°C
-15 / +45
Operating temperature range with winter kit
°C
-30 / +45
Renewable source data
Heating capacity recovered from renewable source at 35°C water and 0°C ground temperature
kW
16,9
Maximum renewable source water return temperature
°C
+45
Minimum renewable source delivery water temperature
°C
-5
Renewable source water with 25% glycol flow (nominal / maximum / minimum)
l/h
3020 / 4000 / 2000
Renewable source water pressure drop (outlet water at -5°C, at nominal water flow)
bar
0,57
Burner characteristics
Heat input (nominal, at 15°C - 1013 mbar)
kW
26,4
Heat input (real)
kW
26,0
Natural gas (G20) consumption at 15 °C - 1013 mbar
m³/h
2,79
LPG G30 / G31 consumption at 15 °C - 1013 mbar
kg/h
2,09 / 2,05
Installation data
Power supply
V/Hz
230/50
Nominal electrical power consumption
kW
0,41
Sound pressure at 5 meters distance from unit front side in free field
dB(A)
44,1
IP protection class
25
Max. water operating pressure
bar
4,0
Hydraulic connection
Ø "
F 1 1/4
Gas connection
Ø "
F 3/4
Installation type
C13, C33, C43, C53, C63, C83, B23P, B33
Maximum flow flue condensate
l/h
4,2
Exhaust air flue diameter
mm Ø
80
Flue gas exhaust residual head
Pa
90
NOx emission class
6
Water content inside the appliance (hot / cold side)
l
4 / 3
Refigerating fluid data
Ammonia R717 content in refrigerating fluid
kg
7,0
Water H₂O content in refrigerating fluid
kg
10,0
Max. pressure of the refrigerating circuit
bar
32
Dimensions
Width
mm
1056
Depth
mm
729
Height
mm
1280
Weight
kg
287

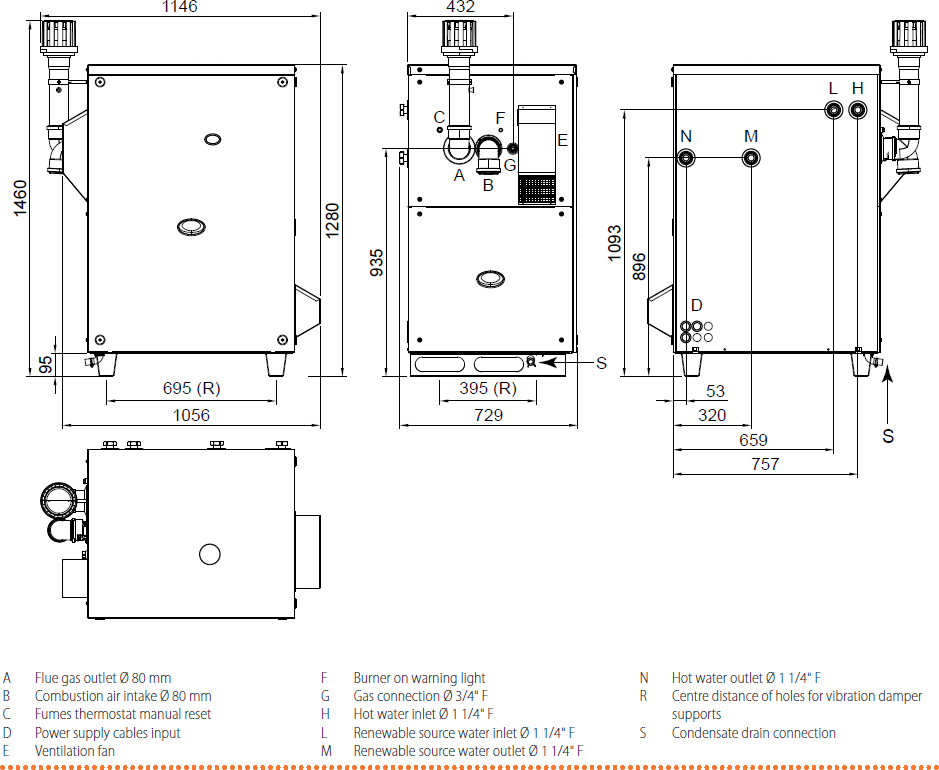

Dimensions

Model: GAHP-GS Plus
Dimensions
