Gas absorption heat pump, takes heat from Air and gives it to Water for heating or domestic hot water production, maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 41.3 kW (A7/W35), G.U.E. gas utilization efficiency 164% (A7/W35), A+ energy class ErP on 55°C operation, gas (G20) consumption 2.67 m³/h, electrical power consumption while fan working on min/max speed 0.50/0.77 kW, sound pressure level while fan working on min/max speed (at 5 m distance) 49/52 dB(A), water connection 1¼", electrical degree of protection IP X5D, weight 400 kg, outside working temperature -15°C/+40°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
Interested in this product? Contact us:

Linas Skauminas

LT, EN
+370 671 56675

Head of the company,
design consulting
Get Offer
Click on the Model for technical data, dimensions, accessories
GAHP-A - takes heat from Air and gives it to Water for heating or domestic hot water production
GAHP-A STANDARD Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 41.3 kW (A7/W35), G.U.E. gas utilization efficiency 164% (A7/W35), A+ energy class ErP on 55°C operation, gas (G20) consumption 2.67 m³/h, electrical power consumption 0.84 kW, sound pressure level (at 5 m distance) 57.6 dB(A), water connection 1¼", electrical degree of protection IP X5D, weight 390 kg, outside working temperature -15°C/+40°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-A STANDARD
Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 41.3 kW (A7/W35), G.U.E. gas utilization efficiency 164% (A7/W35), A+ energy class ErP on 55°C operation, gas (G20) consumption 2.67 m³/h, electrical power consumption 0.84 kW, sound pressure level (at 5 m distance) 57.6 dB(A), water connection 1¼", electrical degree of protection IP X5D, weight 390 kg, outside working temperature -15°C/+40°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-A LOW-NOISE Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 41.3 kW (A7/W35), G.U.E. gas utilization efficiency 164% (A7/W35), A+ energy class ErP on 55°C operation, gas (G20) consumption 2.67 m³/h, electrical power consumption while fan working on min/max speed 0.50/0.77 kW, sound pressure level while fan working on min/max speed (at 5 m distance) 49/52 dB(A), water connection 1¼", electrical degree of protection IP X5D, weight 400 kg, outside working temperature -15°C/+40°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
GAHP-A LOW-NOISE
Maximum outlet water temperature for heating/DHW 65/70°C, heating capacity 41.3 kW (A7/W35), G.U.E. gas utilization efficiency 164% (A7/W35), A+ energy class ErP on 55°C operation, gas (G20) consumption 2.67 m³/h, electrical power consumption while fan working on min/max speed 0.50/0.77 kW, sound pressure level while fan working on min/max speed (at 5 m distance) 49/52 dB(A), water connection 1¼", electrical degree of protection IP X5D, weight 400 kg, outside working temperature -15°C/+40°C, can be ordered with special winter kit for operation on lower temperature down to -30°C
Model: GAHP-A LOW-NOISE
Heating operation mode data
Energy class (55°C operation)
ErP
A+
G.U.E. gas utilization efficiency at 35°C water and 7°C air temperature
%
164
Heating capacity at 35°C water and 7°C air temperature
kW
41,3
G.U.E. gas utilization efficiency at 50°C water and 7°C air temperature
%
152
Heating capacity at 50°C water and 7°C air temperature
kW
38,3
Nominal water flow rate (ΔT = 10°C)
m³/h
3,0
Nominal water pressure loss (outlet water at 50°C)
kPa
43
Maximum outlet water temperature (heating / DHW)
°C
+65 / +70
Maximum inlet water temperature (heating / DHW)
°C
+55 / +60
Operating temperature range
°C
-15 / +40
Operating temperature range with winter kit
°C
-30 / +40
Burner characteristics
Thermal input (actual)
kW
25,2
Natural gas (G20) consumption at 15 °C - 1013 mbar
m³/h
2,67
LPG G30 / G31 consumption at 15 °C - 1013 mbar
kg/h
1,99 / 1,96
Installation data
Power supply
V/Hz
230/50
Nominal electrical power consumption at min / max fan speed
kW
0,50 / 0,77
Sound pressure at 5 meters distance from unit front side in free field while fan working on min / max speed
dB(A)
49,0 / 52,0
IP protection class
X5D
Hydraulic connection
Ø "
F 1 1/4
Gas connection
Ø "
F 3/4
Exhaust air flue diameter
mm Ø
80
Dimensions
Width
mm
854
Depth
mm
1260
Height
mm
1536
Weight
kg
400

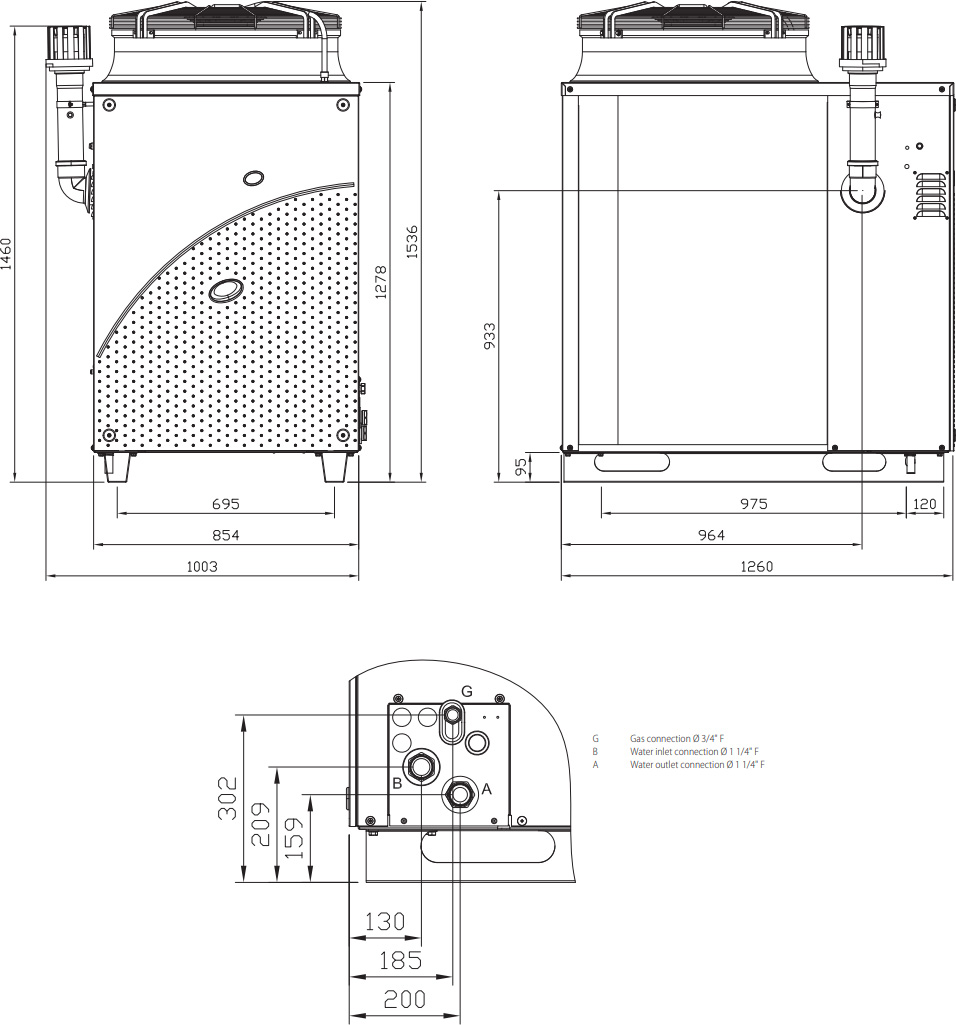

Dimensions

Model: GAHP-A LOW-NOISE

Gas powered absorption heat pump GAHP-A is designed for high efficiency heating and domestic hot water production.

Advantages

  • Up to 39% utilisation of air- source renewable energy. Designed to exceed peak efficiency (G.U.E. - Gas Utilization Efficiency) of 164%. It ensures efficiency levels in excess of 154% even at -7 °C, so it is also used in especially cold climates. It thus avoids activating back-up systems (boilers and electrical heaters), reducing the seasonal performance coefficients and hence increase consumption.
  • It is a super-efficient solution for domestic hot water production.
  • It increases the total efficiency of the heating system when it is combined or integrated with boilers with a lower energy performance.
  • It provides up to 40% of running cost savings if compared with the best condensing boilers.
  • It enhances the energy qualification of buildings with the consequent increase in the value of the building.
  • It is eligible for national and local incentive programs all over Europe.
  • With a GAHP-A, every year 4.4 Tons of CO2 emissions are saved, which are equivalent to those absorbed by 625 trees or those produced by 2 green cars; every year 2 Tons of Oil Equivalent are saved. Moreover, Robur GAHP-A uses natural refrigerants not subject to normal constraints and phase-out (F-Gas Regulation exempt).

Applications

  • Ideal for heating and domestic hot water production for buildings with high gas/LPG consumption, either with low or high temperature systems.
  • For outdoor installation

Versions

  • Available in standard or lownoise version.
  • Available also in:
    • pre-assembled units for higher capacity, combined with Robur chillers and/or boilers;
    • integrated outdoor package with condensing boiler Gitié AHAY.
GAHP-A gas absorption heat pump Air/Water
