Water air curtain, horizontal and vertical mounting, 3 step fan, protection class IP20, mounting height up to 3.2 m, built in control system (motion sensor, water valve switch, 2 selected fan steps switch), very thin - only 189 mm in height, heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
Interested in this product? Contact us:

Arvydas Palivonas

LT, RU, EN
+370 601 74426

Sales representative for Vilnius, Ukmergė, Utena, Kaišiadorys and Varėna regions Get Offer

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Sales representative for Kaunas, Panevėžys, Šiauliai, Telšiai, Klaipėda, Tauragė, Marijampolė and Alytus districts Get Offer
Click on the Model for technical data, dimensions, accessories
SLIM W - horizontal and vertical mounting, 3 step fan, protection class IP20, mounting height up to 3.2 m, built in control system (motion sensor, water valve switch, 2 selected fan steps switch), very thin - only 189 mm in height
SLIM W-100 WHITE Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-100 WHITE
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-150 WHITE Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-150 WHITE
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-200 WHITE Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-200 WHITE
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-100 BLACK Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-100 BLACK
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-150 BLACK Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-150 BLACK
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-200 BLACK Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
SLIM W-200 BLACK
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
SLIM W/AS - horizontal and vertical mounting, 3 step fan, protection class IP20, mounting height up to 3.2 m, built in control system (motion sensor), very thin - only 189 mm in height, can be connected to BMS
SLIM W-100/AS WHITE Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-100/AS WHITE
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-150/AS WHITE Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-150/AS WHITE
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-200/AS WHITE Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-200/AS WHITE
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-100/AS BLACK Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-100/AS BLACK
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-150/AS BLACK Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-150/AS BLACK
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-200/AS BLACK Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
SLIM W-200/AS BLACK
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
Model: SLIM W-150 BLACK
General data
Heating capacity at 90/70°C water and 10°C air temperature, fan at max speed
kW
14,4
Heating capacity at 50/40°C water and 10°C air temperature, fan at min speed
kW
5,3
Air flow range
m
3,2
Max. air flow
m³/h
1950
Fan data
Steps
3
Fan data at 3rd (max) speed
Air flow
m³/h
1950
Air flow with filter (Coarse 30%)
m³/h
1300
Air flow range
m
3,2
Power consumption
W
165
Current consumption
A
0,7
Max. acoustic pressure level at a distance of 3 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
57
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
56
Max. acoustic power level according to ISO 27327-2
dB(A)
72
Fan data at 2nd (mid) speed
Air flow
m³/h
1450
Air flow with filter (Coarse 30%)
m³/h
1100
Air flow range
m
2,8
Power consumption
W
110
Current consumption
A
0,5
Max. acoustic pressure level at a distance of 3 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
48,5
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
47,5
Max. acoustic power level according to ISO 27327-2
dB(A)
63,5
Fan data at 1st (min) speed
Air flow
m³/h
1200
Air flow with filter (Coarse 30%)
m³/h
1000
Air flow range
m
2,1
Power consumption
W
90
Current consumption
A
0,4
Max. acoustic pressure level at a distance of 3 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
45
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
44
Max. acoustic power level according to ISO 27327-2
dB(A)
59
Installation data
Power supply
V/Hz
1N ~ 230/50
IP protection class
20
Installation
Horizontal / vertical
Max. heating water temperature
°C
110
Max. operating pressure
MPa
1,6
Hydraulic connection
Ø "
½
Max. mounting height
m
3,2
Other data
Color
Black
Dimensions
Length
mm
1500
Depth
mm
399
Height
mm
189
Weight without water
kg
21,5
Weight of unit filled with water
kg
22,4

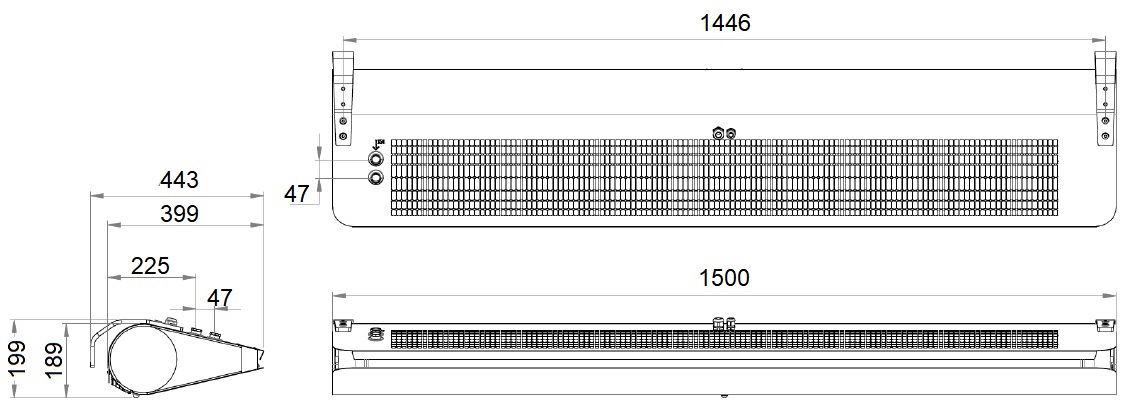

Dimensions

Model: SLIM W-150 BLACK

Heating capacity tables

SLIM W-150 BLACK airflow on 3 speed = 1950 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 110/90°C
21,0
934
28,9
32,0
20,0
890
26,5
35,5
19,0
846
24,1
38,5
18,0
802
21,9
42,0
17,0
758
19,7
45,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
16,5
726
19,2
25,0
15,4
682
17,1
28,5
14,4
637
15,2
32,0
13,4
592
13,3
35,0
12,4
547
11,5
38,5

0
5
10
15
20
Tw1/Tw2 = 80/60°C
14,2
624
15,0
21,5
13,2
579
13,1
25,0
12,1
534
11,3
28,5
11,1
488
9,7
31,5
10,1
443
8,1
35,0

0
5
10
15
20
Tw1/Tw2 = 70/50°C
11,9
522
11,3
18,0
10,9
476
9,6
21,5
9,8
431
8,0
25,0
8,8
385
6,5
28,0
7,7
339
5,2
31,5

0
5
10
15
20
Tw1/Tw2 = 60/40°C
9,6
420
7,9
14,5
8,6
374
6,5
18,0
7,5
328
5,1
21,5
6,5
281
3,9
24,5
5,4
233
2,8
28,0

0
5
10
15
20
Tw1/Tw2 = 50/40°C
9,1
795
25,4
14,0
8,1
705
20,5
17,5
7,1
613
15,9
20,5
6,0
521
11,9
24,0
4,9
427
8,4
27,5
SLIM W-150 BLACK airflow on 2 speed = 1450 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 110/90°C
17,6
785
21,1
36,0
16,8
748
19,3
39,0
16,0
711
17,6
42,5
15,1
674
15,9
45,5
14,3
637
14,4
48,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
13,8
610
14,0
28,5
13,0
573
12,5
31,5
12,1
535
11,1
34,5
11,3
498
9,7
38,0
10,4
460
8,4
41,0

0
5
10
15
20
Tw1/Tw2 = 80/60°C
11,9
524
11,0
24,5
11,1
486
9,6
27,5
10,2
449
8,3
30,5
9,3
411
7,1
34,0
8,5
372
5,9
37,0

0
5
10
15
20
Tw1/Tw2 = 70/50°C
10,0
439
8,3
20,5
9,2
401
7,0
23,5
8,3
362
5,9
27,0
7,4
324
4,8
30,0
6,5
285
3,8
33,0

0
5
10
15
20
Tw1/Tw2 = 60/40°C
8,1
353
5,8
16,5
7,2
315
4,8
19,5
6,3
276
3,8
23,0
5,4
236
2,9
26,0
4,5
196
2,1
29,0

0
5
10
15
20
Tw1/Tw2 = 50/40°C
7,7
668
18,6
15,5
6,8
592
15,0
19,0
5,9
515
11,7
22,0
5,0
438
8,7
25,0
4,1
359
6,1
28,5
SLIM W-150 BLACK airflow on 1 speed = 1200 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 110/90°C
15,7
701
17,1
39,0
15,0
668
15,7
42,0
14,2
635
14,3
45,0
13,5
602
13,0
48,0
12,8
569
11,7
51,0

0
5
10
15
20
Tw1/Tw2 = 90/70°C
12,3
545
11,4
30,5
11,6
511
10,2
33,5
10,8
478
9,0
36,5
10,1
444
7,9
39,5
9,3
411
6,9
42,5

0
5
10
15
20
Tw1/Tw2 = 80/60°C
10,7
468
9,0
26,5
9,9
434
7,8
29,5
9,1
400
6,8
32,5
8,3
366
5,8
35,5
7,6
332
4,9
38,5

0
5
10
15
20
Tw1/Tw2 = 70/50°C
8,9
391
6,7
22,0
8,2
357
5,7
25,0
7,4
323
4,8
28,0
6,6
289
3,9
31,0
5,8
254
3,1
34,0

0
5
10
15
20
Tw1/Tw2 = 60/40°C
7,2
315
4,8
18,0
6,4
281
3,9
21,0
5,7
246
3,1
24,0
4,8
211
2,3
27,0
4,0
175
1,7
29,5

0
5
10
15
20
Tw1/Tw2 = 50/40°C
6,9
596
15,1
17,0
6,1
528
12,2
20,0
5,3
460
9,5
23,0
4,5
391
7,1
26,0
3,7
321
5,0
29,0
  • PT - heating capacity
  • Tp1 - air temperature at the unit inlet
  • Tp2 - air temperature at the unit outlet
  • Tw1 - heating medium temperature at the heat exchanger inlet
  • Tw2 - heating medium temperature at the heat exchanger outlet
  • Qw - heating medium flow rate in heat exchanger
  • Δpw - heating medium pressure drop in heat exchanger

If you want to calculate heating capacity at different parameters you can do this at manufacturer website.
