Click on the Model for technical data, dimensions, accessories
SLIM W - horizontal and vertical mounting, 3 step fan, protection class IP20, mounting height up to 3.2 m, built in control system (motion sensor, water valve switch, 2 selected fan steps switch), very thin - only 189 mm in height
SLIM W-100 WHITE Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-100 WHITE
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-150 WHITE Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-150 WHITE
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-200 WHITE Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-200 WHITE
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-100 BLACK Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-100 BLACK
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-150 BLACK Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-150 BLACK
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-200 BLACK Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
SLIM W-200 BLACK
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
SLIM W/AS - horizontal and vertical mounting, 3 step fan, protection class IP20, mounting height up to 3.2 m, built in control system (motion sensor), very thin - only 189 mm in height, can be connected to BMS
SLIM W-100/AS WHITE Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-100/AS WHITE
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, white color, 2 year WARRANTY
SLIM W-150/AS WHITE Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-150/AS WHITE
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, white color, 2 year WARRANTY
SLIM W-200/AS WHITE Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-200/AS WHITE
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, white color, 2 year WARRANTY
SLIM W-100/AS BLACK Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-100/AS BLACK
Heating capacity: from 3.1 kW (50/40°C) to 8.2 kW (90/70°C), air flow 750/900/1100 m³/h, fan power 75/90/115 W, sound pressure level 45/49.5/54.5 dB(A), length 1 m, weight 16.2 kg, black color, 2 year WARRANTY
SLIM W-150/AS BLACK Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-150/AS BLACK
Heating capacity: from 5.3 kW (50/40°C) to 14.4 kW (90/70°C), air flow 1200/1450/1950 m³/h, fan power 90/110/165 W, sound pressure level 44/47.5/56 dB(A), length 1.5 m, weight 21.5 kg, black color, 2 year WARRANTY
SLIM W-200/AS BLACK Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
SLIM W-200/AS BLACK
Heating capacity: from 6.5 kW (50/40°C) to 20.2 kW (90/70°C), air flow 1400/1800/2850 m³/h, fan power 115/150/230 W, sound pressure level 37/45/58 dB(A), length 2 m, weight 26.9 kg, black color, 2 year WARRANTY
Model: SLIM W-200 BLACK
General data
Heating capacity at 90/70°C water and 10°C air temperature, fan at max speed
kW
20,2
Heating capacity at 50/40°C water and 10°C air temperature, fan at min speed
kW
6,5
Air flow range
m
3,2
Max. air flow
m³/h
2850
Fan data
Steps
3
Fan data at 3rd (max) speed
Air flow
m³/h
2850
Air flow with filter (Coarse 30%)
m³/h
1900
Air flow range
m
3,2
Power consumption
W
230
Current consumption
A
1,0
Max. acoustic pressure level at a distance of 3 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
59
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
58
Max. acoustic power level according to ISO 27327-2
dB(A)
74
Fan data at 2nd (mid) speed
Air flow
m³/h
1800
Air flow with filter (Coarse 30%)
m³/h
1600
Air flow range
m
2,8
Power consumption
W
150
Current consumption
A
0,6
Max. acoustic pressure level at a distance of 3 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
46
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
45
Max. acoustic power level according to ISO 27327-2
dB(A)
61
Fan data at 1st (min) speed
Air flow
m³/h
1400
Air flow with filter (Coarse 30%)
m³/h
1350
Air flow range
m
2,1
Power consumption
W
115
Current consumption
A
0,5
Max. acoustic pressure level at a distance of 3 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
38
Max. acoustic pressure level at a distance of 5 m from the unit, in the 1500 m³ room of medium capabillity of sound absorption
dB(A)
37
Max. acoustic power level according to ISO 27327-2
dB(A)
53
Installation data
Power supply
V/Hz
1N ~ 230/50
IP protection class
20
Installation
Horizontal / vertical
Max. heating water temperature
°C
110
Max. operating pressure
MPa
1,6
Hydraulic connection
Ø "
½
Max. mounting height
m
3,2
Other data
Color
Black
Dimensions
Length
mm
2000
Depth
mm
399
Height
mm
189
Weight without water
kg
26,9
Weight of unit filled with water
kg
28,1

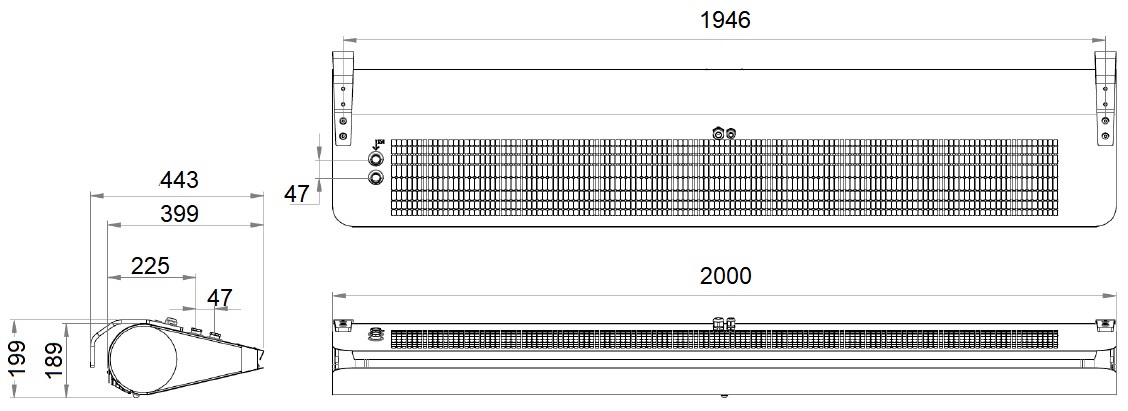

Dimensions

Model: SLIM W-200 BLACK

Heating capacity tables

SLIM W-200 BLACK airflow on 3 speed = 2850 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 114/90°C
29,6
1101
46,3
31,0
28,3
1051
42,5
34,5
26,9
1000
38,8
38,0
25,5
949
35,2
41,0
24,2
898
31,9
44,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
23,0
1016
42,2
24,0
21,6
954
37,6
27,5
20,2
892
33,3
31,0
18,8
830
29,2
34,5
17,4
768
25,3
37,5

0
5
10
15
20
Tw1/Tw2 = 80/60°C
19,9
874
33,0
20,5
18,5
812
28,9
24,0
17,1
750
25,0
27,5
15,6
687
21,3
31,0
14,2
624
17,9
34,5

0
5
10
15
20
Tw1/Tw2 = 70/50°C
16,8
734
24,8
17,5
15,3
671
21,2
21,0
13,9
608
17,7
24,5
12,4
544
14,5
28,0
11,0
480
11,6
31,0

0
5
10
15
20
Tw1/Tw2 = 60/40°C
13,6
594
17,6
14,0
12,2
531
14,4
17,5
10,7
467
11,5
21,0
9,2
402
8,8
24,5
7,7
336
6,4
28,0

0
5
10
15
20
Tw1/Tw2 = 50/40°C




11,4
989
45,0
17,0
9,9
863
35,1
20,0
8,4
735
26,3
23,5
7,0
605
18,6
27,0
SLIM W-200 BLACK airflow on 2 speed = 1800 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 110/90°C
22,4
996
38,7
37,0
21,3
950
35,5
40,0
20,3
903
32,3
43,0
19,2
856
29,3
46,0
18,2
810
26,5
49,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
17,6
777
25,9
29,0
16,5
729
23,1
32,0
15,5
682
20,5
35,5
14,4
635
18,0
38,5
13,3
587
15,6
41,5

0
5
10
15
20
Tw1/Tw2 = 80/60°C
15,2
668
20,3
25,0
14,1
621
17,8
28,0
13,1
573
15,4
31,5
12,0
525
13,2
34,5
10,9
477
11,1
37,5

0
5
10
15
20
Tw1/Tw2 = 70/50°C
12,8
561
15,3
21,0
11,7
513
13,1
24,5
10,6
465
11,0
27,5
9,5
417
9,0
30,5
8,4
368
7,2
33,5

0
5
10
15
20
Tw1/Tw2 = 60/40°C
10,4
454
10,9
17,0
9,3
406
8,9
20,5
8,2
357
7,1
23,5
7,1
308
5,5
26,5
5,9
257
4,0
29,5

0
5
10
15
20
Tw1/Tw2 = 50/40°C




8,7
756
27,7
19,5
7,6
659
21,7
22,5
6,5
562
16,3
25,5
5,3
463
11,5
28,5
SLIM W-200 BLACK airflow on 1 speed = 1400 m³/h
Tp1
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C
PT
Qw
∆pw
Tp2
kW
l/h
kPa
°C

0
5
10
15
20
Tw1/Tw2 = 110/90°C
19,2
855
29,3
40,5
18,3
815
26,8
43,5
17,4
775
24,5
46,5
16,5
735
22,2
49,5
15,6
695
20,1
52,5

0
5
10
15
20
Tw1/Tw2 = 90/70°C
15,1
667
19,6
32,0
14,2
626
17,5
35,0
13,3
586
15,5
38,0
12,4
545
13,6
41,0
11,4
504
11,9
43,5

0
5
10
15
20
Tw1/Tw2 = 80/60°C
13,1
574
15,4
27,5
12,1
533
13,5
30,5
11,2
492
11,7
33,5
10,3
451
10,0
36,5
9,3
410
8,4
39,5

0
5
10
15
20
Tw1/Tw2 = 70/50°C
11,0
482
11,7
23,5
10,1
441
10,0
26,5
9,1
399
8,4
29,0
8,2
358
6,9
32,0
7,2
316
5,5
35,0

0
5
10
15
20
Tw1/Tw2 = 60/40°C
9,0
390
8,3
19,0
8,0
349
6,8
22,0
7,0
307
5,4
25,0
6,1
264
4,2
27,5
5,1
221
3,1
30,5

0
5
10
15
20
Tw1/Tw2 = 50/40°C




7,5
649
21,1
20,5
6,5
566
16,5
23,5
5,5
482
12,4
26,5
4,6
398
8,8
29,5
  • PT - heating capacity
  • Tp1 - air temperature at the unit inlet
  • Tp2 - air temperature at the unit outlet
  • Tw1 - heating medium temperature at the heat exchanger inlet
  • Tw2 - heating medium temperature at the heat exchanger outlet
  • Qw - heating medium flow rate in heat exchanger
  • Δpw - heating medium pressure drop in heat exchanger

If you want to calculate heating capacity at different parameters you can do this at manufacturer website.
